SHO-PXD Medical Imaging

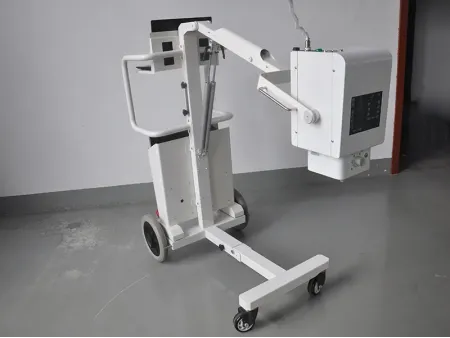

Portable digital radiography unit with large-diameter caster mobile trolley

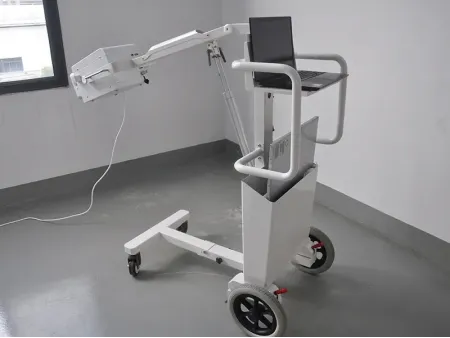

Designed as a trolley-mounted portable radiographic equipment, the DELUXE portable X-ray machine offers 5kW, 5.6kW, and 8kW power options to meet your imaging needs. It features a 10.4-inch color touchscreen, a 17-inch × 17-inch wired flat panel detector, and a 15.6-inch Dell laptop for smooth operation. Designed for enhanced mobility and durability, this portable X-ray machine comes with a premium adjustable trolley that includes a laptop stand and a flat panel detector storage compartment. Unlike the BASIC and UPGRADED X-ray machines, its reinforced large wheels ensure greater stability and easier movement, making it ideal for fast-paced clinical environments.

Specifications
Model SHO-PXD01 SHO-PXD02 SHO-PXD03
Power (kW) 5 5.6 (with battery) 8
High voltage Generator
kV Range (kV) 40-110 40-125 40-125
mAs range (mAs) 0.2-200 0.1-200 0.1-200
mA range (mA) 20-100 10-100 10-100
Working frequency (kHz) ≥40
Communication mode RS232
Exposure time (s) 0.01-4
Exposure mode Hand brake, wireless hand remote controller, touch screen button
X-ray tube
Anode heat storage (kHU) 56
Focal spot (mm) 1.8
Anode Angle (°C) 15
Collimator
Power supply AC/DC 24 V±10%
Light type 5W LED
Light delay time (s) 30±2
Illumination ≥160Lux
Inherent filtration 1.2mmAL@75 kV
Dimension
Main head unit (L×W×H) (mm) 290×265×230 425×240×220 425×240×220
Net weight (kg) 19 18 18

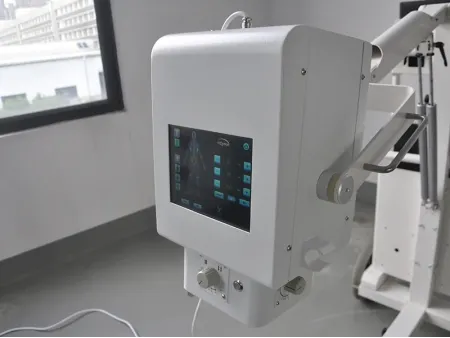

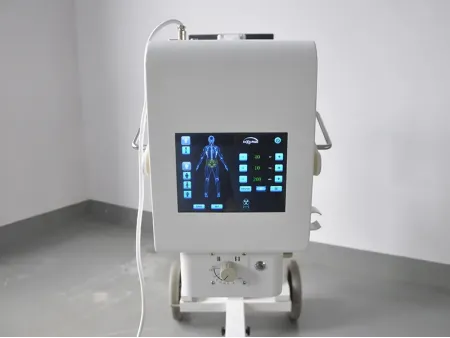

Head screen 10.4-inch LCD color touch screen
Trolley height adjustable range 515-1810 mm (from spot to floor)
Flat panel detector
  • Model: Venu1717X (Iray brand)
  • Dimension (L×W×H): 460×460×15mm
  • X-ray Energy: 40-150kV
  • Scintillator: CsI:Tl
  • Pixel Size: 139um
  • Fill Factor: 70%
  • Effective Array: 3072×3072
  • Effective Area (H×V): 427×427mm
  • Spatial Resolution: Min. 3.4 lp/mm
  • Image Transfer: Gigabit Ethernet
Working station (Console)
  • Brand: Dell
  • Model: Vos15-3520
  • Processor: Smart Intel ® Core ™ i5-1135
  • Operating system: Windows 11 Home
  • Graphics Card: Intel ® UHD graphics
  • Card Memory: 32 GB DDR4
  • Storage: 512 GB SSD
  • Display size 15.6-inch screen Full HD (1920×1080)
  • Net weight: 1.69kg
  • Thickness: 16.96mm
X-Ray Imaging

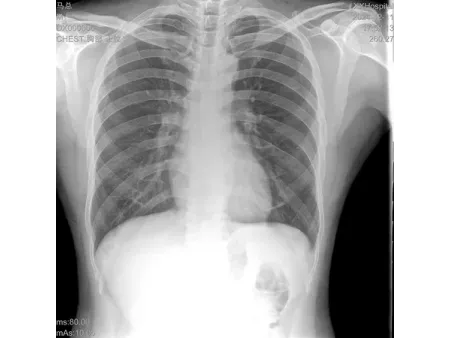

Chest radiograph

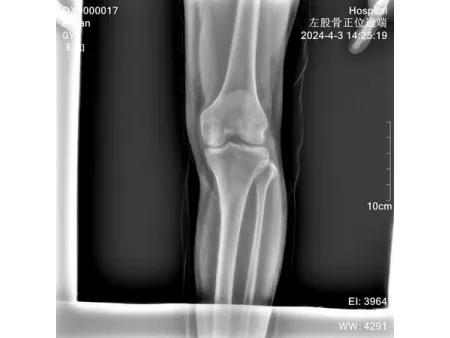

Limb radiograph

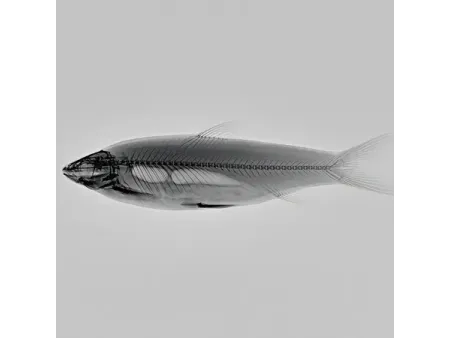

Veterinary radiograph
Applications

The following are the diverse applications of the DELUXE portable X-ray machine across various medical and veterinary fields:

  • Emergency room
  • Orthopedics
  • Physical examination
  • Field training
  • Operating room
  • ICU
  • Ambulance
  • Animal husbandry
  • Sports medicine
  • Nursing home
  • Rural medical visits
  • Pet hospital

Looking for a portable X-ray machine with superior mobility and performance? Contact us today to learn more about our offer!
