JW-A14 Fourteen Heads Linear Weigher Stainless Steel Machine

JW-A14 Fourteen Heads Linear Weigher Stainless Steel Machine,500-5000g,4.5L

Request a Quote

Website: http://jwweigher.com/1-1-7-jw-a14-fourteen-heads-linear-weigher-stainless-steel-machine.html

Application

The JW-A14 fourteen head linear weigher is ideal for dosing and weighing large grain and long strip agricultural products such as potatoes, sweet potatoes, tomatoes, onions, carrots, and more.

Basic Features

Th high precision, high-level special load cell is customizable according to your needs.
An intelligent multi-sampling stable mode ensures weighing is more accurate.
The smart failure alarm allows for easier maintenance.
This 14 head linear weigher features a brand new high-integration modular design and CAN bus technology.

Machine Characteristics

The mechanical structures are specially designed for potatoes, carrots and other agricultural products reduce damage to them during transportation.

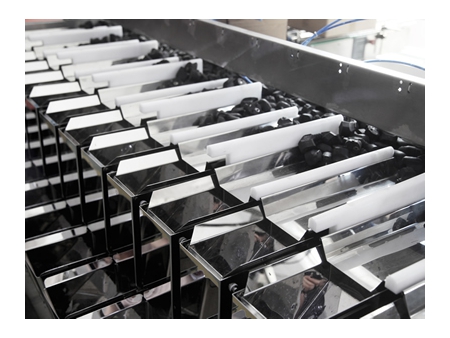

An enhanced hopper structure design satisfies usage requirements and ensures operational stability.

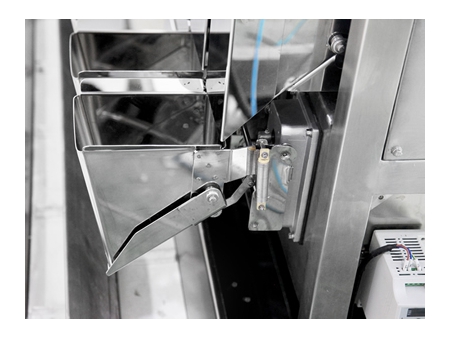

The automatic gate facilitates automatic gate opening and closing following a material signal feedback.

Technical Parameters

Model	JW-A14
Product code	A14L-2-1
Single weighing range	500~5000g
Weighing accuracy class	X(1)
Maximum weighing speed (Pack/Min)	40P/M
Bucket volume	4.5L
Control Panel	10.1”Touch Screen
Options	Dimple Plate/Timing Hopper/Printer/ Reject Device
Driving System	Step Motor
Power	2200W
Power supply	220V / 50/60Hz / 10A
