JW-AX4 Four Head Linear Weigher Stainless Steel Machine,50-2000g,3L
Request a Quote
Application
The JW-AX4 four head linear weigher is specially designed for dosing and weighing powder and small granule materials with a relatively uniform size, such as sugar, salt, seeds, rice, chicken powder, milk powder, other powders, and more.
Basic Features
- A brand new highly-integrated modular control system is used in the single head linear weigher.
- User-friendly control: mechanical amplitude and relevant parameters can be freely adjusted according to the production situation.
- The weigher is applicable to weighing a wide array of materials at the same time, allowing for mixed material packaging.
- With a stepless vibratory feeding mode, it allows for real-time control on material flow to ensure an accurate weighing.
Machine Characteristics

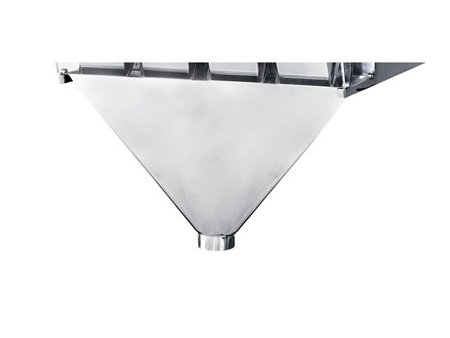

- All parts are manufactured with food grade stainless steel and parts that come into contact with food (the infeed hopper, discharge hopper, vibration plate, and weighing hopper) all meet food safety and hygiene standards.
- The food grade conveyor belt can be customized to satisfy different application needs for a variety of materials.
- The easy-to-remove structure of material-contact parts ensures easy maintenance and cleaning.
- A special load cell is customizable to guarantee the weighing accuracy.
- A pneumatic door opening device allows for automatic opening and closing.
Technical Parameters
| Model | JW-AX4 |
| Product code | AX4-2-2 |
| Single weighing range | 50-2000g |
| Weighing accuracy class | X(1) |
| Maximum weighing speed (Pack/Min) | 60P/M |
| Bucket volume | 3L |
| Control Panel | 7”Touch Screen |
| Options | Timing Hopper |
| Power | 1200W |
| Power supply | 220V/500W/50/60HZ/3A |

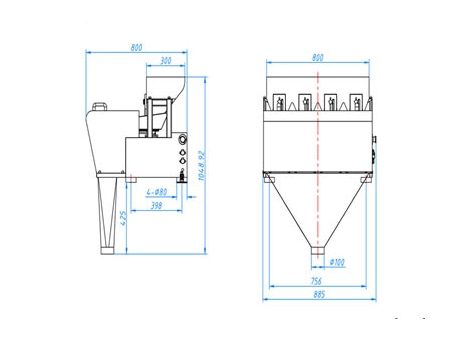

| Machine dimension(L × W × H) | 1400(L)X1200(W)X1100(H) |
| Gross Weight | 240kg |
