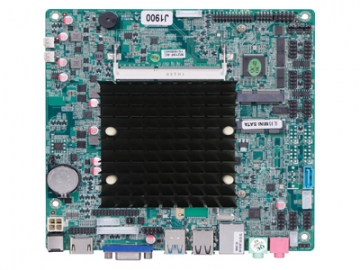

M218FC/M219FC/M229FC Mini-ITX Motherboard, Intel® Celeron J1900/ J1800, Pentium J2900 Processors, DC-Power
Request a Quote
Parameters
| Dimension | 170mm*170mm*18mm | |
| CPU | Support Intel® Celeron® CPU J1800 dual-core 2.41GHz, Turbo 2.58GHz Intel® Celeron® CPU J1900 quad-core 1.99GHz, Turbo 2.4GHz Intel® Celeron® CPU J2900 quad-core 2.41GHz, Turbo 2.66GHz | |
| Chipset | Intel Bay trail SOC chipset | |
| Power supply | 1*DC_JACK | DC 12V Power: about 25W Recommended DC 12V4A(current: 4A or more than 4A) |
| 1*DC_PWR | ||
| Memory | 1*DIMM slot | NB-DDR3 memory, support 1600MHz memory, low voltage 1.35V, up to 8GB |
| LAN | 1*LAN port | Realtek 8111H gigabit network card, support wake-on-LA and PXE boot free |
| Display | Graphics card | Intel HD Graphics Controller, support single display, dual display duplicate, dual display extend, DOS: single display |
| 1*VGA standard port | Support maximum resolution 1920*1200@60HZ | |
| 1*VGA_OUT pin | Support maximum resolution 1920*1200@60HZ (1*12Pin, 2.0mm) | |
| 1*HDMI 1.4 port | Support maximum resolution 1920*1080@60HZ | |
| 1*HDMI_CON pin | Support maximum resolution 1920*1080@60HZ (2*8Pin, 2.0mm） | |
| 1*LVDS pin | Support maximum resolution 1920*1080@60HZ (2*15Pin, 2.0mm） | |
| 1*LVDS_PWR pin | LVDS voltage regulate pin (2*3Pin，2.0mm) | |
| 1*INVERT pin | LVDS backlight control pin (1*6Pin，2.0mm) | |

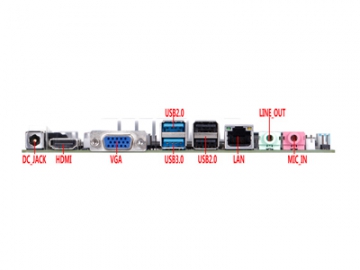

| USB | 1*USB3.0 port | Rear standard USB3.0 port (under the blue set） |
| 3*USB2.0 port | Rear standard USB2.0 port (USB over the blue set and black set USB） | |
| 1*F_USB1 pin | Front USB2.0 pin，each set with 2*USB2.0（2*5Pin, 2.54mm） | |
| 1*F_USB2 pin | Front USB2.0 pin，each set with 2*USB2.0（2*5Pin, 2.54mm） | |
| Audio | Realtek ALC662 HD digital audio decoder, 6 channel high fidelity audio controller | |
| 1*LINE_OUT port | Support audio output | |
| 1*MIC_IN port | Support microphone input | |
| 1*JAMP pin | Support 8Ohm 5W speaker dual channel output(power amplifier)（1*4Pin，2.0mm） | |
| 1*F_AUDIO pin | Standard audio pin(2*5Pin，2.54mm） | |
| 1*SPDIF_OUT pin | Digital audio pin(1*3Pin，2.54mm） | |
| Storage devices | 1*SATA2 port | Standard SATA 2.0 |
| 1*MSATA port | Support MSATA 2.0 | |
| 1*SATA_PWR pin | SATA power pin, 5V, 12V power (1*4Pin，2.54mm） | |
| Switch | 1*F_PANEL pin | Switch, power LED, HDD LED, reset pin (2*5Pin, 2.54mm） |
| 1*AUTO_SW pin | Power switch pin (1*3Pin，2.0mm） | |
| Other I/O | 1*COM pin | Support standard RS232, no RS485 (2*5Pin, 2.54mm) |
| 1*MINI_PCIE port | Support WIFI/3G/4G | |
| 1*SIM_CARD slot | Support SIM card When using 3G/4G, SIM card is needed. | |
| 1*CLR_CMOS pin | Motherboard reset, discharge pin (1*3Pin, 2.54mm） | |
| 2*FAN pin | Fan pin (1*3Pin, 2.54mm) | |
| 1*J_GPIO pin | GPIO control pin (2*5Pin, 2.0mm) | |
| Environment | Operation temperature: -20℃-60℃; relative humidity: 5%-95%, non-condensing | |
| BIOS | AMI BIOS，support power on, timing switch, remote switch, intelligent identification devices | |
| Watch Dog | Watch dog programming, support hardware reset (256 levels, 0-255 seconds) | |
| OS | Support Windows 10, Windows 8, Windows 7, Linux etc. | |
Optional motherboard
| Model | CPU | LAN（RJ45） | COM | USB | Memory（MAX） | Power |
| M219FC | J1900 | 1 | 1 | 8 | 8GB | 12V |
| M218FC | J1800 | 1 | 1 | 8 | 8GB | |
| M229FC | J2900 | 1 | 1 | 8 | 8GB |
