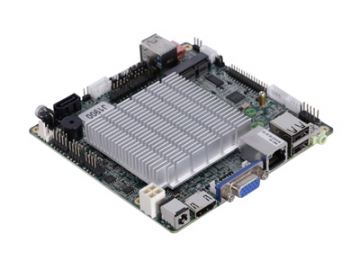

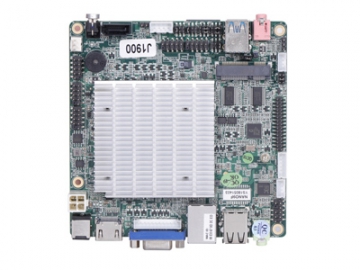

NANO8F/NANO9F Nano-ITX Motherboard, Intel® Celeron J1900/J1800, Pentium J2900 Processors, DC-Power
Request a Quote
Parameters
| Model | NANO8F |
| Processor | Intel Celeron J1900, J1800, Pentium J2900 CPU |
| Memory | 1x DDR3 (1.35V) Memory channel, support Max 8GB RAM |
| Ethernet | Realtek 8111F 1000Mbps LAN , optional 2xLAN |
| Audio | Realtek ALC662 HD Audio, support Line-out, Mic-in, SPDIF, Speaker |
| CPU Graphics | Intel HD Graphics, support 1080P(2K,FHD),H264,3D play |
| Display | VGA, HDMI, LVDS, support synchronously, asynchronously dual display |
| Hard Disk | 1xSATA2.0 , 1xMSATA |
| Power Supply | DC 12V, recommend 12V 5A(Or more than 5A). |
| CPU_FAN | Fanless (Heat sink) |
| Form Factor | Nano-ITX ,120 x120x18mm(L x W x H) |

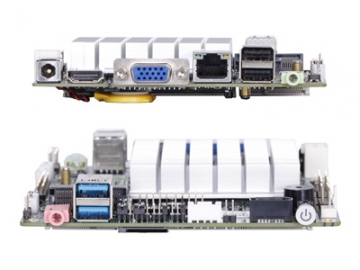

| I/O Port | DC-in, HDMI, VGA, 3xUSB2.0, 1xUSB3.0, LAN, Line-out, Mic-in |
| Build-in Pin | LVDS, VGA, 4xUSB, 2xCOM (Optional RS485), FAN, SIM Card slot , SPDIF, Speaker. |
| Expansion | 2xMini-PCIE slots, support Wi-Fi, 4G/3G, Bluetooth, GPS, MSATA |
| Temperature | -20℃~60℃(Working) -20℃~70℃(Storage) |
| Working Humidity | 5-95% relative humidity, non-condensing |
| Operating System | Support Windows 7, Windows 8, Windows 10, Linux, Android |
| Fitted Case | NANO19 |
| Architecture | X86 architecture |
| Watch dog | Watch dog programming, support hardware reset function (256 levels, 0~255 seconds). |
| BIOS | AMI BIOS; Support read only, power on, timing switch, remote switch, intelligently identify devices. |
