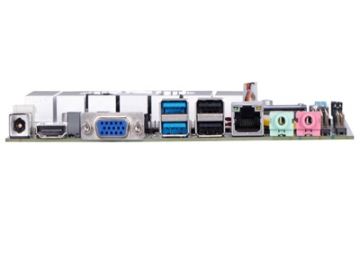

1037F/2117F Mini-ITX Motherboard, Intel® Celeron/Pentium Processors, DC-Power Manufacturer

1037F/2117F Mini-ITX Motherboard, Intel® Celeron/Pentium Processors, DC-Power

Request a Quote

View All: http://acrel-power.com/7-4-dc-auxiliary-power-supply-aclp10.html

Parameters

Dimension	170mm170mm18mm
CPU	Intel® Celeron® 1037U; Intel ® Povos® 2117U
Chipset	HM65/HM67/HM70/HM76 chipset
Memory	1*DDR3 SODIMM slot, support 1333/1600MHz memory, up to 8GB
Power supply	1*DC_JACK	DC 12V Power: about 30W Recommended DC 12V5A(current: 5A or more than 5A)
Power supply	1*DC_PWR
Display	Intel® HD Graphics Controller, support single display, dual display duplicate, dual display extend, DOS: single display
	1*VGA DB15 port	Support maximum resolution 1920*1200@60HZ
	1*HDMI 1.4 port	Support maximum resolution 1920*1080@60HZ
	1*LVDS pin	Support maximum resolution 19201080@60HZ （215Pin, 2.0mm）
	1*VGA_OUT pin	Support maximum resolution 19201200@60HZ （112Pin, 2.0mm）
LAN	1*RTL8111E gigabit network card, support wake-on-LA and PXE boot free (dual gigabit LAN ports）
Storage devices	1*SATA1 port	Standard SATA3.0, maximum transmission speed: 6.0 Gbps
	1*SATA2 port	Standard SATA2.0, maximum transmission speed: 3.0 Gbps
	1*MSATA port	Support MSATA
	2*SATA_PWR pin	SATA power pin, 5V, 12V power (1*4Pin，2.54mm）
Audio	Realtek ALC662 HD digital audio decoder, 6 channel high fidelity audio controller
	1*FRONT_SPK port	Support audio output(green)
	1*MIC_IN port	Support microphone input(red)
	1*JAMP pin	Power amplifier supports 8Ohm 5W speaker dual channel output（1*4Pin，2.0mm）
	1*F_AUDIO pin	Standard audio pin(2*5Pin，2.54mm）
USB	2*USB3.0 port	Rear standard USB3.0 port（Note：HM65/HM67 chipset: USB2.0）
	2*USB2.0 port	Rear standard USB2.0 port
	1*FUSB1 pin	Front USB2.0 pin，each set with 2USB2.0（25Pin, 2.54mm）
	1*FUSB2 pin	Front USB2.0 pin，each set with 2USB2.0（25Pin, 2.54mm）
Switch	1*F_PANEL pin	Switch, power LED, HDD LED, reset pin (2*5Pin, 2.54mm）
Other I/O	COM pin	Serial port, 2COM/6COM, support standard RS232
	1*LPT pin	Parallel port, standard printing pin (2*13, 2.54mm)
	1*MINI_PCIE port	Support WIFI/3G/4G module
	1*SIM slot	Support SIM card When using 3G/4G, SIM card is needed.
	1*CLR_CMOS pin	Motherboard reset, discharge pin (1*2Pin，2.54mm）
	1*BAT socket	Battery socket (1*2Pin, 2.0mm）
	1*FAN1 pin	Fan pin (1*3Pin, 2.54mm）
	1*FAN2 pin	Fan pin (1*3Pin, 2.54mm）
Environment	Operation temperature: -20℃-60℃; Relative humidity: 5%-95%, non-condensing
BIOS	AMI BIOS, support power on, timing switch, remote switch, intelligent identification devices
Watch Dog	Watch dog programming, support hardware reset (256 levels, 0-255 seconds)
OS	Windows 10, Windows 8, Windows 7, Windows XP, Ubuntu 14.04, Ubuntu 16.04 etc.

Optional motherboard

Model	CPU	LAN（RJ45）	COM	USB	Memory（MAX）	Power
1037F-2C	1037U	1	2	8	8GB	12V
1037F-6C	1037U	1	6	8	8GB
1037F-2L2C	1037U	2	2	6	8GB
1037F-2L6C	1037U	2	6	6	8GB
1037FS-2C	1037U	1	2	8	10GB
1037FS-6C	1037U	1	6	8	10GB
1037FS-2L2C	1037U	2	2	6	10GB
1037FS-2L6C	1037U	2	6	6	10GB

Certificates

CE, CCC, ISO, MSDS, UN38.3, UN3091, POA
