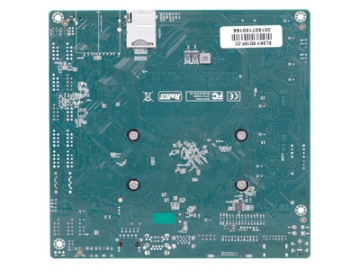

M218F/M219F/M229F Mini-ITX Motherboard, Intel® Celeron J1900/J1800, Pentium J2900 Processors, DC-Power
Request a Quote
Parameters
| Dimension | 170mm*170mm*18mm | |
| CPU | Intel® CPU Celeron J1800, Celeron J1900, Povos J2900 | |
| Chipset | Intel Bay trail SOC chipset | |
| Memory | 1*NB-DDR3 SODIMM slot, support 1333/1600MHz memory, low voltage 1.35V, up to 8GB | |
| Power supply | 1*DC_JACK | DC 12V Power: about 25W Recommended DC 12V5A(current: 5A or more than 5A) |
| 1*DC_PWR | ||
| Display | HD Graphics (Sandy Bridge) Controller, support single display, dual display duplicate, dual display extend, DOS: single display | |
| 1*VGA DB15 port | Support maximum resolution 1920*1200@60HZ | |
| 1*VGA_H pin | Support maximum resolution 1920*1200@60HZ (1*12Pin, 2.0mm） | |
| 1*HDMI 1.4 port | Support maximum resolution 1920*1080@60HZ | |
| 1*HDMI_CON pin | Support maximum resolution 1920*1080@60HZ (2*8Pin, 2.0mm） | |
| 1*LVDS pin | Support maximum resolution 1920*1080@60HZ (2*15Pin, 2.0mm） | |
| LAN | 1*LAN port | RTL8111E gigabit network card, support wake-on-LA and PXE boot free |
| 1*MINI_PCIE port | Support WIFI/3G/4G module | |
| Storage devices | 1*SATA port | Standard SATA 2.0 |
| 1*MSATA port | Support MSATA 2.0 | |
| 1*SATA_PWR pin | SATA power pin, 5V, 12V power (1*4Pin，2.54mm） | |
| Audio | Realtek ALC662 HD digital audio decoder, 6 channel high fidelity audio controller | |
| 1*LINE_OUT port | Support audio output(green) | |
| 1*MIC_IN port | Support microphone input(red) | |
| 1*JAMP pin | Power amplifier supports 8Ohm 5W speaker dual channel output（1*4Pin，2.0mm） | |
| 1*F_AUDIO pin | Standard audio pin(2*5Pin，2.54mm） | |

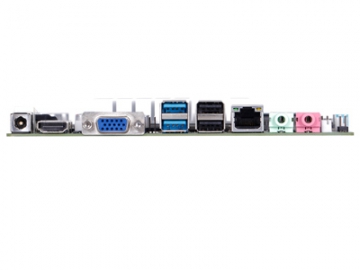

| USB | 1*USB3.0 port | Rear standard USB3.0 port (under the blue set） |
| 3*USB2.0 port | Rear standard USB2.0 port (over the blue set） | |
| 1*F_USB1 pin | Front USB2.0 pin，each set with 2*USB2.0（2*5Pin, 2.54mm） | |
| 1*F_USB2 pin | Front USB2.0 pin，each set with 2*USB2.0（2*5Pin, 2.54mm） | |
| 1*F_USB3 pin | Front USB2.0 pin，each set with 2*USB2.0（2*5Pin, 2.54mm） | |
| Switch | 1*F_PANEL pin | Switch, power LED, HDD LED, reset pin (2*5Pin, 2.54mm） |
| Other I/O | COM pin | Serial port, support standard RS232;COM3, COM4, COM6 support RS232/RS422/RS485 (2*5Pin，2.54mm） |
| 1*JLPT pin | Parallel port, standard printing pin (2*13, 2.0mm) | |
| 1*SIM slot | Support SIM card When using 3G/4G, SIM card is needed. | |
| 1*CLR_CMOS pin | Motherboard reset, discharge pin (1*2Pin，2.54mm） | |
| 1*BAT socket | Button battery socket Plugging the battery can let motherboard reset and discharge. (1*2Pin, 2.0mm） | |
| 1*PS/2 pin | Standard PS/2 pin（1*7Pin, 2.0mm） | |
| 2*FAN pin | Fan pin (1*3Pin, 2.54mm) | |
| 1*J_GPIO pin | GPIO control pin (2*5Pin, 2.0mm) | |
| Environment | Operation temperature: -20℃-60℃; relative humidity: 5%-95%, non-condensing | |
| BIOS | AMI BIOS，support power on, timing switch, remote switch, intelligent identification devices | |
| Watch Dog | Watch dog programming, support hardware reset (256 levels, 0-255 seconds) | |
| OS | Support Windows 10, Windows 8, Windows 7, Linux etc. | |
Optional motherboard
| Model | CPU | LAN | COM | USB2.0 | USB3.0 | Memory | Power |
| M219F-2C | Celeron J1800 Celeron J1900 Povos J2900 Optional | 1 | 2 | 9 | 1 | 1*NB-DDR3 8G（MAX） | 12V |
| M219F-6C | 1 | 6 | 9 | 1 | |||
| M219F-10C | 1 | 10 | 9 | 1 | |||
| M219F-2L2C | 2 | 2 | 7 | 1 | |||
| M219F-2L6C | 2 | 6 | 7 | 1 | |||
| M219F-2L10C | 2 | 10 | 7 | 1 | |||
| The same as M218F/M229F | |||||||
