Hydraulic Tunneling Drilling Rig, KJ311
Request a Quote

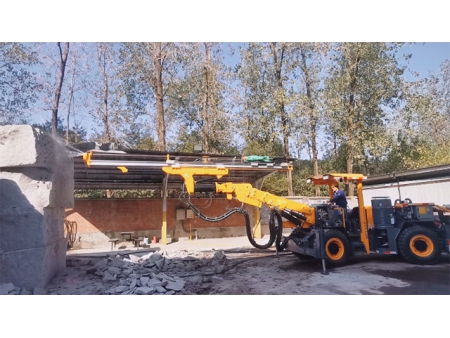

Face drilling rig with telescopic feed beam
- Dimensions (L×W×H): 11300×1750×2000/3000mm
- Weight: Approx.12000kg
- Maximum gradeability: 25%(14°)
- Range of cross section: 12-35m²

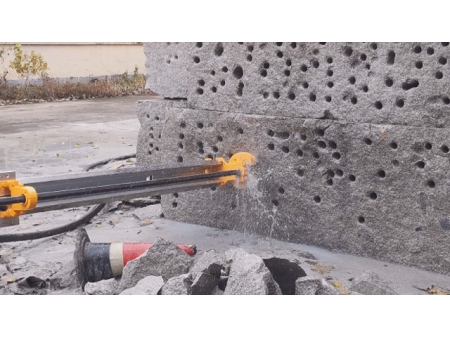

This hydraulic tunneling drilling rig features a telescopic feed beam, it is suitable for drilling hard rock mines with cross sections of 12-35m². The drilling rig can also realize rock bolting, it is able to drill bolt holes of 2.2m in depth at 4m high tunnels.

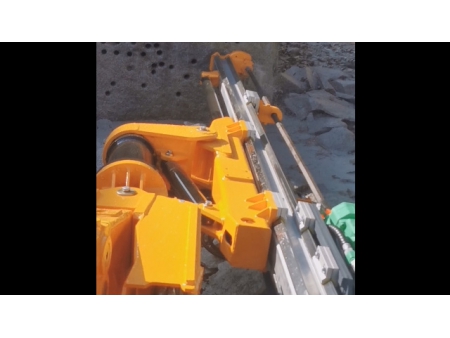

Dimensions and weight | ||||||||
Length | 11300mm | |||||||
Width | 1750mm | |||||||
Height | 2000/3000mm | |||||||
Weight | Approx.12000kg | |||||||
Tramming speed on flat ground | 10km/h | |||||||
Maximum gradeability | 25%(14°) | |||||||
Safety protection | ||||||||
Noise level | < 100dB(A) | |||||||
Lifting safety roof | Meet the requirements of FOPS and ROPS | |||||||
Air and water system | ||||||||
Air compressor | 1×JN4 | Oil consumption of lubrication | 180-250g/h | |||||
Capacity of air compressor | 0.5m³/min | |||||||
Pressure | 6-8bar | Water pump | 1×CR3 | 1×CR5 | ||||
Shank lubrication device | Electronic pulse lubrication pump | Power | 1.5kW | 5.5kW | ||||
Air consumption of lubrication | 0.3m³/min | Capacity of water pump | 3m³/h | 6m³/h | ||||
Chassis | ||||||||
Diesel engine | Cummins QSB3.9-C80-31 60kW, 2200rpm | Tires | 11.00-20 | |||||
Exhaust purification | Exhaust catalyzer | Steering mechanism | Articulated steering angle: ±40° | |||||
Drive system | Closed hydraulic system for four-wheel driving | Travelling braking | Two-circuit hydraulic brake | |||||
Swing angle | Swing of rear axle: ±10° | Parking braking | Wet multi-disc brake of reducer | |||||
Fuel tank | 60L | |||||||
Drilling system | ||||||||
Rock drill (drifter) | 1×HC50/R38 | 1×HC109/R38 | 1×HC95LM/R38 | |||||
Impact power | 13kW | 18.8kW | 21kW | |||||
Impact flow | 105L/min | 135L/min | 100-120L/min | |||||
Impact pressure | 130bar | 135bar | 180-200bar | |||||
Maximum rotary pressure | 150bar | 150bar | 210bar | |||||
Impact frequency | 62Hz | 47Hz | 62Hz | |||||
Torque | 325Nm | 780Nm | 764Nm | |||||
Hole diameter | Ø32-76mm | Ø42-102mm | Ø42-102mm | |||||
Beam rotation | 360° | |||||||
Feed extension | 1100mm | |||||||
Model of drill boom | K26F | |||||||
Form of drill boom | Automatic parallelism | |||||||
Boom extension | 1200mm | |||||||
Electric hydraulic power unit | ||||||||
Motor | 45kW | 55kW | 75kW | |||||
Impact/Feed/Positioning | Variable displacement axial piston pump | |||||||
Rotation | Gear pump | |||||||
Filter fineness | 10µ | |||||||
Hydraulic oil tank | 240L | |||||||
Hydraulic cooler | Water cooler | |||||||
Working voltage | 380V | |||||||
Frequency | 50Hz | |||||||
Starting method | Star/delta | |||||||
Cable reel | 1×F440 | |||||||
Length of reel cabling | 100m | 80m | ||||||
Cable specifications | 3×35 3G6 | 3×50 3G6 |
