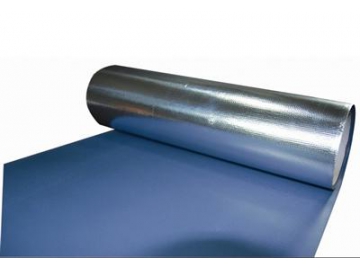

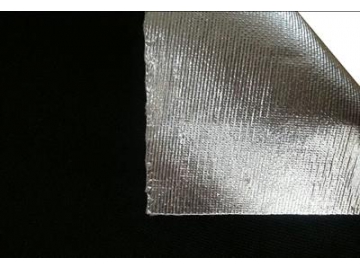

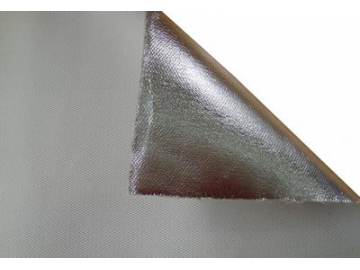

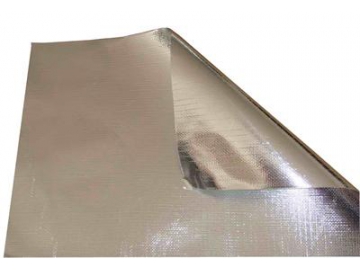

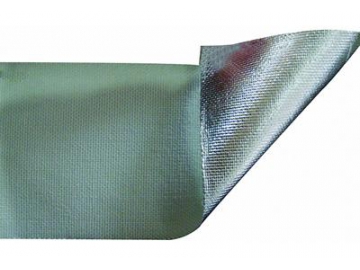

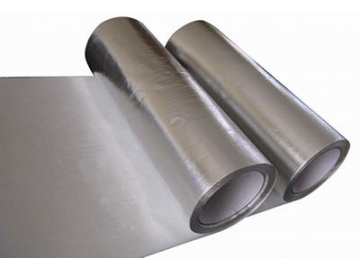

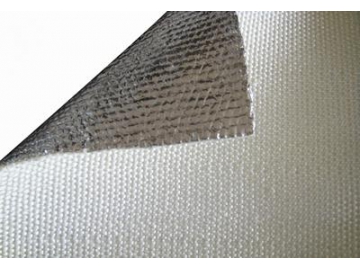

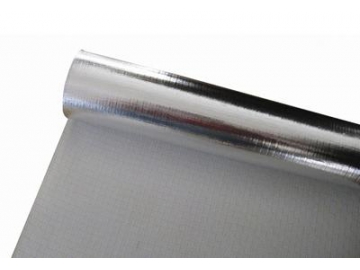

Information on aluminized fiberglass fabric
The W.T Aluminized Fiberglass Cloth Series is ideal thermal insulation material combining aluminum and fiberglass.

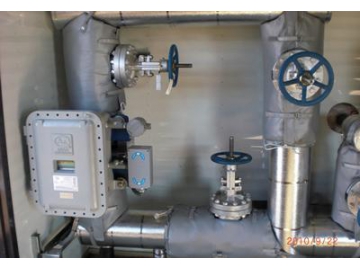

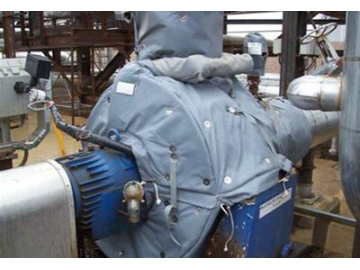

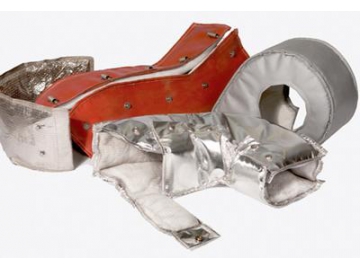

The insulation material combines many types of fiberglass, Kevlar, carbon fiber, flame-retardant cotton, aluminosilicate ceramic cloth, silicone fabric, EPE, non-woven fabric, and other component materials. It can be used for piping protection, engine components, construction materials, and other uses. The excellent thermal insulation materials are great for steam heating pipelines, sound-proof materials in construction and provide a protective layer for glass wool blankets. They offer fire-resistance, anticorrosion, heat insulation, and sound absorbency. For packing materials they offer moisture resistance, mildew proof properties, fire-resistance, and anticorrosive properties.
Product parameters
| Item No. | AL-110 | |
| WEAVE | Plain | |
| THREAD COUNT | WARP | 12 per cm | 30 per inch |
| WEFT | 12 per cm | 30 per inch |
| WIEIGHT | 110 g/ m2 | 3.2 OZ/YD2 |
| THICKNESS | 0.1 mm | 0.004 inch |
| COATING | Aluminum foil/Metalized film/Aluminum foil + PET |
| COATING THICKNESS | 7micron/18micron/25micron | 0.28mil/0.7mil/0.98mil |
| TENSILE | WARP | 820 N/5cm | 92 lbs/inch |
| STRENGTH | WEFT | 800 N/5cm | 90 lbs/inch |
| WIDTH | 100cm | 40 inch |
| 120cm | 48 inch |
| SERVICE TEMPERATURE | Fiberglass is 550℃, while mucilage is 300℃
|
| Item No. | AL-7628 | |
| WEAVE | Plain | |
| THREAD COUNT | WARP | 17.3per cm | 43.94 per inch |
| WEFT | 12.5 per cm | 31.75 per inch |
| WIEIGHT | 200 g/ m2 | 5.8 OZ/YD2 |
| THICKNESS | 0.2 mm | 0.008 inch |
| COATING | Aluminum foil/Metalized film/Aluminum foil + PET |
| COATING THICKNESS | 7micron/18micron/25micron | 0.28mil/0.7mil/0.98mil |
| TENSILE | WARP | 2025 N/5cm | 225 lbs/inch |
| STRENGTH | WEFT | 1620 N/5cm | 180 lbs/inch |
| WIDTH | 100cm | 40 inch |
| 120cm | 48 inch |
| 150cm | 60 inch |
| SERVICE TEMPERATURE | Fiberglass is 550℃, while mucilage is 300℃ |
| Item No. | AL-3732 | |
| WEAVE | 3X1 TWILL | |
| THREAD COUNT | WARP | 18 per cm | 45 per inch |
| WEFT | 13 per cm | 33 per inch |
| WIEIGHT | 430 g/ m2 | 12.7 OZ/YD2 |
| THICKNESS | 0.43 mm | 0.017 inch |
| COATING | Aluminum foil/Metalized film/Aluminum foil + PET |
| COATING THICKNESS | 7micron/18micron/25micron | 0.28mil/0.7mil/0.98mil |
| TENSILE | WARP | 6000 N/5cm | 666 lbs/inch |
| STRENGTH | WEFT | 4500 N/5cm | 500 lbs/inch |
| WIDTH | 100cm | 40 inch |
| 120cm | 48 inch |
| 150cm | 60 inch |
| SERVICE TEMPERATURE | Fiberglass is 550℃, while mucilage is 300℃ |
| Item No. | AL-FW600 | |
| WEAVE | Even grain check | |
| THREAD COUNT | WARP | 15 per cm | 38 per inch |
| WEFT | 15 per cm | 38 per inch |
| WIEIGHT | 600 g/ m2 | 17.6 OZ/YD2 |
| THICKNESS | 0.55 mm | 0.022 inch |
| COATING | Aluminum foil/Metalized film/Aluminum foil + PET |
| COATING THICKNESS | 18micron/25micron | 0.28mil/0.7mil/0.98mil |
| TENSILE | WARP | 6000 N/5cm | 666 lbs/inch |
| STRENG | WEFT | 5000 N/5cm | 555 lbs/inch |
| WIDTH | 100cm | 40 inch |
| 120cm | 48 inch |
| 150cm | 60 inch |
| SERVICE TEMPERATURE | Fiberglass is 550℃, while mucilage is 300℃ |
| Item No. | AL-HT2025 | |
| WEAVE | Plain | |
| THREAD COUNT | WARP | 8 per cm | 20 per inch |
| WEFT | 5.7 per cm | 14 per inch |
| WIEIGHT | 610 g/ m2 | 17.9 OZ/YD2 |
| THICKNESS | 0.75 mm | 0.03 inch |
| COATING | Aluminum foil/Metalized film/Aluminum foil +PET |
| COATING THICKNESS | 7micron/18micron/25micron | 0.28mil/0.7mil/0.98mil |
| TENSILE | WARP | 6000 N/5cm | 666 lbs/inch |
| STRENGTH | WEFT | 5500 N/5cm | 611 lbs/inch |
| WIDTH | 100cm | 40 inch |
| 120cm | 48 inch |
| 150cm | 60 inch |
| SERVICE TEMPERATURE | Fiberglass is 550℃, while mucilage is 300℃ |
| Item No. | AL-3784 | |
| WEAVE | 8 HS Satin | |
| THREAD COUNT | WARP | 18 per cm | 46 per inch |
| WEFT | 13 per cm | 35 per inch |
| WIEIGHT | 880 g/ m2 | 26.4 OZ/YD2 |
| THICKNESS | 0.9 mm | 0.0315 inch |
| COATING | Aluminum foil/Metalized film/Aluminum foil +PET |
| COATING THICKNESS | 7micron/18micron/25micron | 0.28mil/0.7mil/0.98mil |
| TENSILE | WARP | 8000 N/5cm | 900 lbs/inch |
| STRENG | WEFT | 6000 N/5cm | 800 lbs/inch |
| WIDTH | 100cm | 40 inch |
| 120cm | 48 inch |
| 150cm | 60 inch |
| SERVICE TEMPERATURE | Fiberglass is 550℃, while mucilage is 300℃ |
| Item No. | AL-84215 | |
| WEAVE | Plain | |
| THREAD COUNT | WARP | 8 per cm | 20 per inch |
| WEFT | 6 per cm | 15 per inch |
| WIEIGHT | 300 g/ m2 | 8.8 OZ/YD2 |
| THICKNESS | 0.38 mm | 0.015 inch |
| COATING | Aluminum foil/Metalized film/Aluminum foil +PET |
| COATING THICKNESS | 7micron/18micron/25micron | 0.28mil/0.7mil/0.98mil |
| TENSILE | WARP | 901 N/5cm | 100 lbs/inch |
| STRENG | WEFT | 676 N/5cm | 75 lbs/inch |
| WIDTH | 100cm | 40 inch |
| 120cm | 48 inch |
| 150cm | 60 inch |
| SERVICE TEMPERATURE | Fiberglass is 550℃, while mucilage is 300℃ |
| Item No. | AL-M33 | |
| WEAVE | Plain | |
| THREAD COUNT | WARP | 6 per cm | 15.2 per inch |
| WEFT | 3 per cm | 7.6 per inch |
| WIEIGHT | 1120 g/ m2 | 33 OZ/YD2 |
| THICKNESS | 1.5 mm | 0.059 inch |
| COATING | Aluminum foil/Metalized film/Aluminum foil +PET |
| COATING THICKNESS | 7micron/18micron/25micron | 0.28mil/0.7mil/0.98mil |
| TENSILE | WARP | 8000 N/5cm | 900 lbs/inch |
| STRENG | WEFT | 7500 N/5cm | 833 lbs/inch |
| WIDTH | 100cm | 40 inch |
| 120cm | 48 inch |
| 150cm | 60 inch |
| SERVICE TEMPERATURE | Fiberglass is 550℃, while mucilage is 300℃ |
| Item No. | ALS-3732 Fiberglass coated with Silicone Gel |
| WEAVE | 3X1 TWILL | |
| THREAD COUNT | WARP | 18 per cm | 45 per inch |
| WEFT | 13 per cm | 33 per inch |
| WIEIGHT | 430 g/ m2 | 12.7 OZ/YD2 |
| THICKNESS | 0.43 mm | 0.017 inch |
| COATING | Aluminum foil/Metalized film/Aluminum foil +PET |
| COATING THICKNESS | 7micron/18micron/25micron | 0.28mil/0.7mil/0.98mil |
| TENSILE | WARP | 6000 N/5cm | 666 lbs/inch |
| STRENGTH | WEFT | 4500 N/5cm | 500 lbs/inch |
| WIDTH | 100cm | 40 inch |
| 120cm | 48 inch |
| 150cm | 60 inch |
| SERVICE TEMPERATURE | Fiberglass is 550℃, while mucilage is 300℃ |
| Item No. | AL-HT2025PU Fiberglass coated with PU |
| WEAVE | Plain | |
| THREAD COUNT | WARP | 8 per cm | 20 per inch |
| WEFT | 5.7 per cm | 14 per inch |
| WIEIGHT | 610 g/ m2 | 17.9 OZ/YD2 |
| THICKNESS | 0.75 mm | 0.03 inch |
| COATING | Aluminum foil/Metalized film/Aluminum foil +PET |
| COATING THICKNESS | 7micron/18micron/25micron | 0.28mil/0.7mil/0.98mil |
| TENSILE | WARP | 6000 N/5cm | 666 lbs/inch |
| STRENGTH | WEFT | 5500 N/5cm | 611 lbs/inch |
| WIDTH | 100cm | 40 inch |
| 120cm | 48 inch |
| 150cm | 60 inch |
| SERVICE TEMPERATURE | Fiberglass is 550℃, while mucilage is 300℃ |
| Item No. | DLAL-110 Fiberglass coated with both side aluminum foil |
| WEAVE | Plain | |
| THREAD COUNT | WARP | 12 per cm | 30 per inch |
| WEFT | 12 per cm | 30 per inch |
| WIEIGHT | 110 g/m2 | 3.2 OZ/YD2 |
| THICKNESS | 0.1 mm | 0.004 inch |
| COATING | Aluminum foil/Metalized film/Aluminum foil +PET |
| COATING THICKNESS | 7micron/18micron/25micron | 0.28mil/0.7mil/0.98mil |
| TENSILE | WARP | 820 N/5cm | 92 lbs/inch |
| STRENGTH | WEFT | 800 N/5cm | 90 lbs/inch |
| WIDTH | 100cm | 40 inch |
| 120cm | 48 inch |
| SERVICE TEMPERATURE | Fiberglass is 550℃, while mucilage is 300℃ |
WT Thermal Insulation Material is manufacturing and offering aluminized fabrics and fiberglass coated products and some others feature aluminum foils or silicone laminating, these products extend to aluminum foil wrap, aluminum foil laminated fabrics, and adhesive aluminum tapes, aluminum foil fabrics covered insulation foam board etc. We can offer different products that are made with aluminum foils by coating, laminating, or covering; rich experiences and enough knowledge of manufacturing aluminum foil based products is our confidence to provide quality products to global markets.
