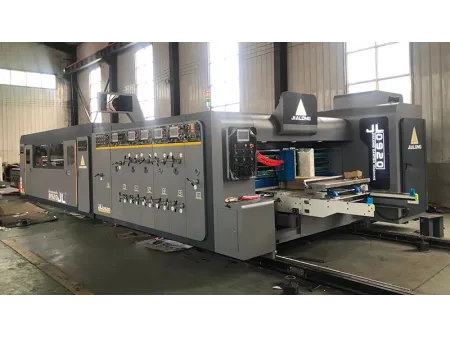

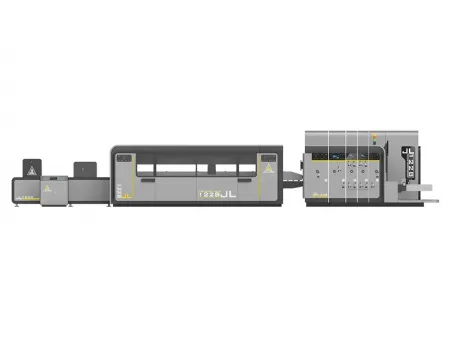

Corrugated cardboard converting machine combining printing, slotting, die-cutting, folding and gluing

Description

This carton converting machine enhances your production process by combining printing, slotting, die-cutting, gluing, and bundling into one operation. Designed for high efficiency and rapid order changes, it’s perfect for large-scale carton manufacturing.

The fully automated production management system allows you to input order specifications via a touchscreen, enabling the carton converting machine to automatically adjust all gaps and parameters with precision and reliability, eliminating the need for manual intervention.

Features
  • Integrated CNC control system for troubleshooting, production management, and remote maintenance
  • Powerful dust collector with anti-static bar for concentrated dust collection and minimal ECT loss
  • High-precision transfer structure using ceramic vacuum transfer wheels for accurate registration
  • Crease slotting device to prevent crease line breakage and ensure better folding results
  • Equipped with internationally branded electrical components and transmission bearings, CE certified
Specifications
Model FFG950-1800 FFG950-2000 FFG950-2200 FFG4212-2200 FFG4212-2400
Max. machine speed (sheets/min) 200 200 200 180 180
Economic printing speed (sheets/min) 160 160 160 150 150
Max. sheet size (mm) 950×2000 950×2200 950×2400 1300×2400 1300×2600
Min. sheet size (mm) 260×500 260×500 260×500 350×800 350×800
Min. space of slotting (obverse knife) (mm) 140×140×140×140 150×150×150×150
Min. space of slotting (reverse knife) (mm) 260×60×260×60 280×60×280×60
Max. depth of slot (mm) 240 240 240 300 300
Sheet size with skip feeding (mm) 1200×2000 1200×2200 1200×2400 1500×2400 1500×2600
Max. printing size (mm) 950×1800 950×2000 950×2200 1300×2200 1300×2400
Standard printing plate thickness (mm) 7.2 7.2 7.2 7.2 7.2
Main Configuration
  • Folder Gluer
    Features a large gluing roller with a mesh pattern for even application. Electric controls ensure precise roller positioning
    Guarantees accurate folding and stability at high speeds
    The beam is fixed securely to the ground, allowing precise and smooth movements
    Electronically and pneumatically controlled gaps for smooth operation
  • Tensioning Device
    Quick and convenient control for all adjustments
    Includes an air knife, brushes, and an electric roller brush for thorough cleaning
    Maintains the perfect glue temperature for the best bonding results
  • Counter Ejector
    Prevents cartons from getting dirty during the process
    Multiple motors ensure fast and accurate counting and stacking
  • Strapping Machine
    Automatic strapping reduces the need for manual labor.
    Secure and tight strapping ensures no rebound and minimal damage to carton edges.
    Operates faster than regular strapping machines, needing fewer workers.
