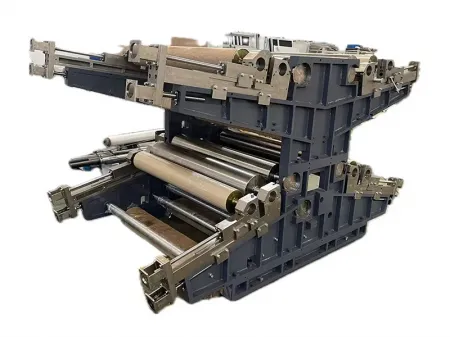

Flexo Printer Slotter

Request a Quote

View All: http://cartonbox-line.com/5-8-flexo-printer-slotter.html

Flexo printer slotter is designed with a chain driven sheet feeder, which can simultaneously perform several operations on 3-layer, 5-layer and 7-layer corrugated cardboard, including water-based printing, creasing, slotting and corner cutting. There are two machine types available for choice: single color and double color type.

Features

The flexo printer slotter is equipped with a chain driven sheet feeder, offering high precision feeding and fast speed.
A reliable air operated diaphragm ink pump is used for pumping printing ink, with high stability, easy adjustment and silent operation. In addition, automatic ink distributing unit is adopted, providing continuous ink supply even during machine stop.
Using straight-cut transmission ensures quiet and stable operation.
The positions of the print roller and slotting knife can be 360-degree electrically adjusted, and the adjustment before and after can be digitally displayed, ensuring high registration accuracy. Due to the fast printing and slotting, high working efficiency is achieved.
Alarm function is available, providing great protection for the workers.

Parameters

Model	SYK530
Max. machine speed	60 sheets/min
Economic machine speed	50 sheets/min
Max. sheet feeding size	1600mm×2500 mm
Min. sheet feeding size	450mm×500 mm
Max. printing area	1600mm×2400mm
Thickness of standard printing plate	6mm
Registration precision	≤±0. 5mm
Die-cut precision	≤±0.75 mm

Main parts list

Name	Origin
Frequency converter	Taiwan DELTA
Relay	Chint
Immediate relay	France Schneider
Button	France Schneider
