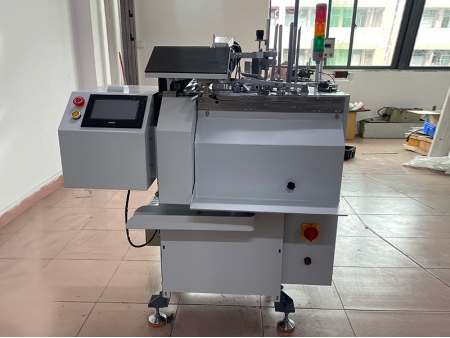

Automatic Paper Air Freshener Stringing Machine, TL-UM8-U2
Automatic paper air freshener stringing machine is our company’s fourth-generation model developed specifically for threading car air fresheners. Designed to meet the characteristics of popular European and American-style car air fresheners on the market, this machine automatically completes tag feeding, punching, stringing, knotting, and counting in one seamless process.
Tailored for the car paper air freshener industry, the equipment is easy to set up, maintain, and operate, effectively eliminating the hassle of manual threading. It is an essential tool for manufacturers of car paper air fresheners.
Compared to the TL-LY8-U2 model, this machine offers greater stability, faster speed, and quieter operation.
Main Features: PLC control system touchscreen frequency converter sensors indexing device driven by gear box counter

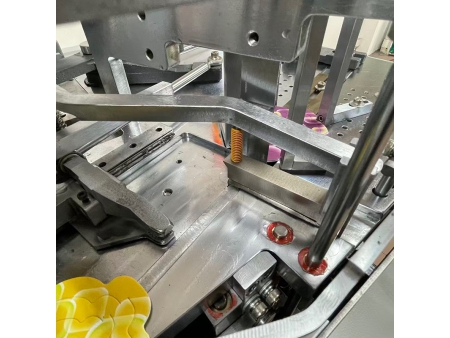

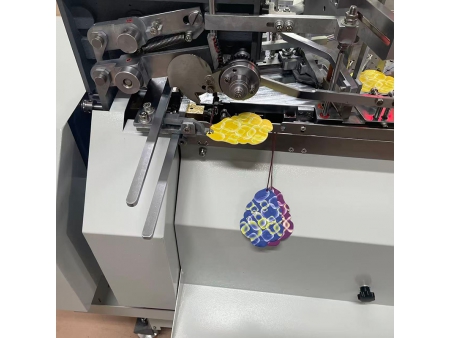

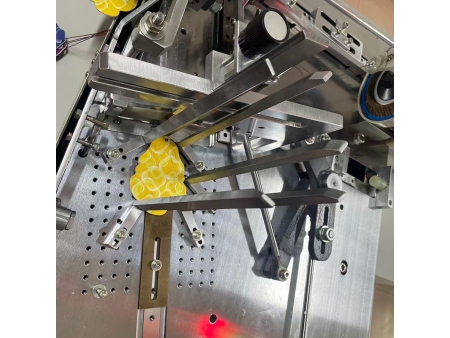

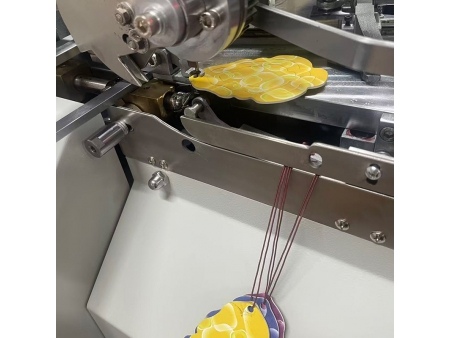

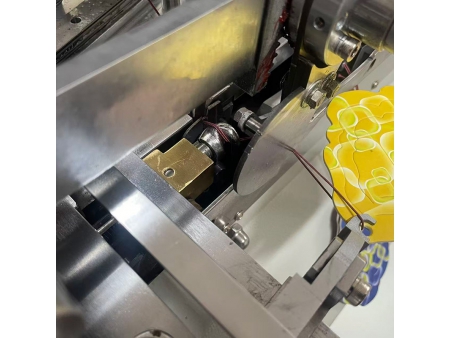

Tag feeding deviceHole punching unitString feeding deviceKnotting mechanismFinished product discharging unit| Hang Tag Stringing Machine | |
| Model | TL-UM8-U2 |
| Speed | 3600-6000pcs/h |
| Cutting method | Cold cut |
| Weight | 450kg |
| Dimensions | 1100*1000*1200mm |
| Power supply | 220V, single phase, 50/60Hz |
| Power | 0.75kW |
| Hang Tag | |

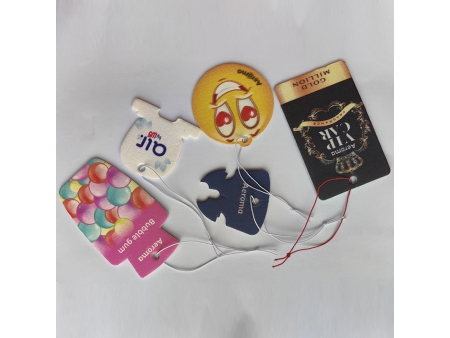

| Tag material | Paper air fresheners |
| Tag thickness | 200-700gsm (for other thicknesses, machine is customizable per your sample) |
| Min. tag size | 20*35mm |
| Max. tag size | 90*150mm |
| Tag hole diameter | 4.0mm, 5.0mm |
| Tag shape | Various irregular shapes |
| String thickness | 0.3-1.2mm |
| String material | Elastic string |
| Knotted string working length | 80-200mm (tail is excluded) |
| Knotted string tail length | 15-20mm |
