Automatic Tag Stringing Machine, TL-UM8 Manufacturer

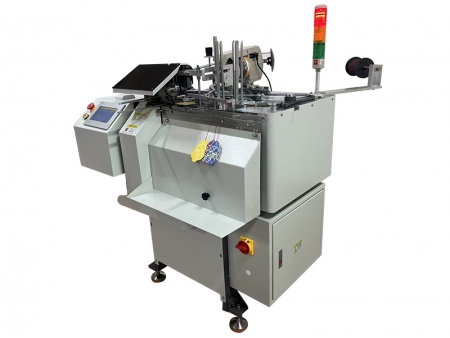

Automatic Tag Stringing Machine, TL-UM8

Request a Quote

View All: http://stringermachineinc.com/1-2-automatic-tag-stringing-machine.html

Engineered specifically for today’s popular paper tags, our fourth-generation automatic tag stringing machine delivers effortless setup, seamless operation, and easy maintenance.

Compared to the TL-LY8 model, it boasts enhanced stability, faster speeds, and quieter performance, automatically handling tag feeding, punching, stringing, knotting, and counting in one smooth process.

Designed exclusively for the printed tag industry, it eliminates the challenges of manual threading, boosting productivity and precision for your business.

Main Features: PLC control system touchscreen frequency converter sensors indexing device driven by gear box counter

Details

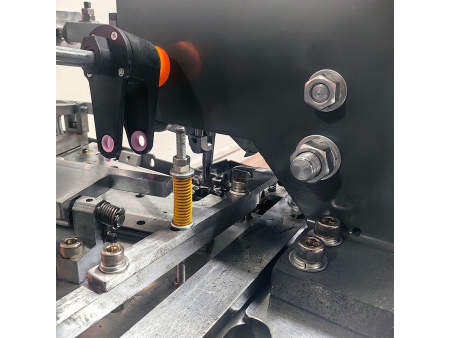

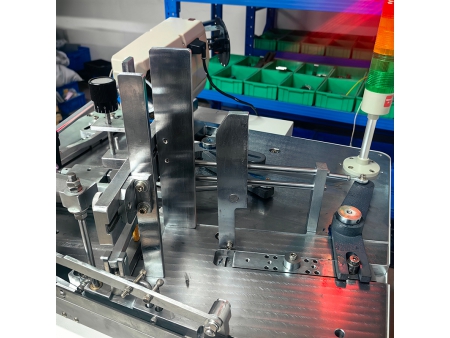

Tag feeding device

Hole punching unit

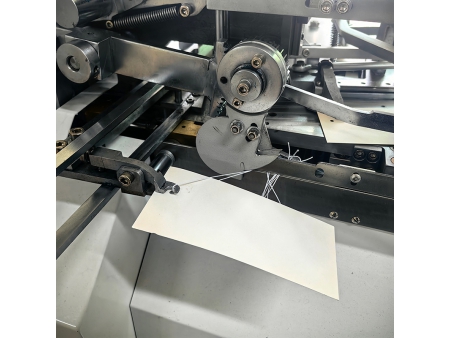

String feeding device

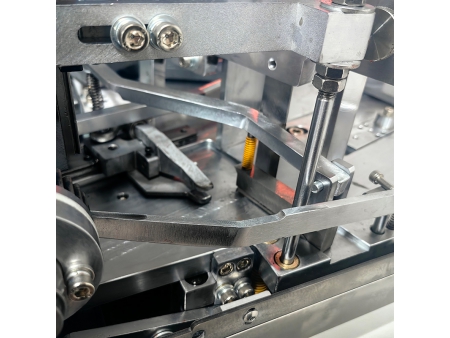

Knotting mechanism

Specifications

Hang Tag Stringing Machine
Model	TL-UM8
Speed	3600-6000pcs/h
Cutting method	Cold cut
Weight	450kg
Dimensions	110010001200mm
Power supply	220V, single phase, 50/60Hz
Power	0.75kW

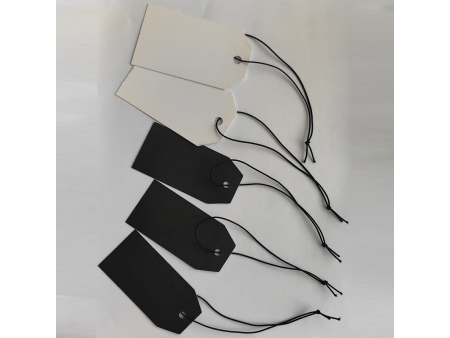

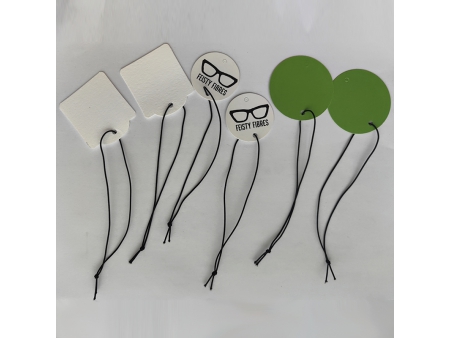

Hang Tag
Tag material	Paper
Tag thickness	180-350gsm (for other thicknesses, machine is customizable per your sample)
Min. tag size	20*35mm
Max. tag size	90*180mm
Tag hole diameter	3.0mm, 4.0mm, 5.0mm
Tag shape	Various irregular shapes
String thickness	0.3-1.2mm
String material	Elastic string
Knotted string working length	80-200mm (tail is excluded)
Knotted string tail length	15-20mm
