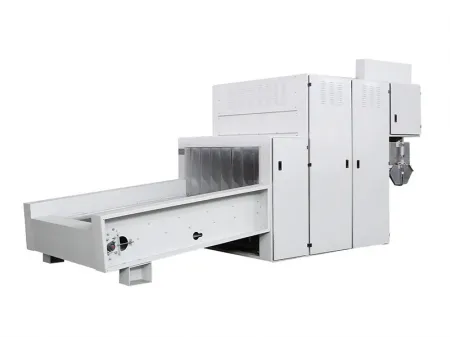

The fiber opener is equipped with a large roller and multiple small rollers operating at a speed of 1400 rpm/min. The equipment is designed for the opening of various fibers ranging from 3D to 25D. Its opening rate is over 98% and the process will not damage the fibers.

The fiber opener is equipped with a metal detector to detect metal objects as small as 2mm. If it detects a metal object inside, the machine will sound an alarm and halt, automatically reversing the conveyor so that the metal contaminated materials can be removed. The machine also supports automatic material feeding.

Specifications

Model	SZSM360	SZSM560	SZSM710	SZSM790
Dimensions	2200x700x970mm	2200x920x970mm	2200x1080x1070mm	2200x1200x1140mm
Power	900w	1000w	1000w	1000w
Capacity	50Kg-80Kg/H	100Kg-180Kg/H	160Kg-230Kg/H	250Kg-300Kg/H
Opening Rate	≥98%
Weight	440Kg	480Kg	530Kg	580Kg

Model	SZSM1000	SZSM1200	SZSM1500
Dimensions	2200x1420x1140mm	3150x1600x1220mm	31500x1900x1220mm
Power	7.5Kw 0.75Kw	7.5Kw 0.75Kw	11Kw 0.75Kw
Capacity	300Kg-400Kg/H	400Kg-450Kg/H	500Kg-600Kg/H
Opening Rate	≥98%
Weight	650Kg	800Kg	1000Kg
