Features

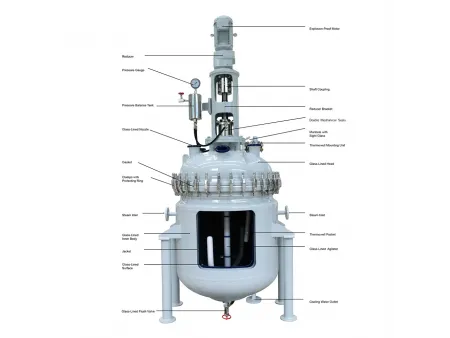

  • The K type glass lined reactor is a reactor designed with separable cover and body. The cover is fastened to the body using clamps, with gaskets between them.
  • Generally, this pressure vessel is suitable for the small capacity chemical processing works.
  • Since the cover can be separated from the body, the chemical process equipment comes with a diversity of agitating methods and is excellent for all kinds of users.
  • Made from TJ09/TJ16/TJ21S high end enamel, combining proven and sophisticated enameling technology, this open type glass lined reactor provides remarkable resistance to corrosion, impact and severe change of temperature as well as reliable durability.
  • According to capacities, Our K type glass lined reactors are available in K50L, K100L, K200L, K300L, K500L, K1000L, K1500L, K2000L, K3000L, K4000L, K5000L, K6300L, K8000L, K10000L, K12500L, K16000L and other models. They ensure ease of use and maintenance.
Technical Parameters of the Glass-Lined Reactor

  • K50L-K100L Design Drawing (Plan View)
  • K200L-K500L Design Drawing (Plan View)
  Internal Vessel Jacket
Design Pressure
( MPa )		 0.4 0.6
Design Temperature
( ℃ )		 -19~200 -19~200
Symbol Usage
a Manhole
b Agitator Hole
c Thermowell
d Medium Outlet
e1,e2 Sightglass
f,g Spare
k1,k2,k3,k4 In/Outlet
m Vent Hole
Specifications (Unit:mm)
Model K50 K100 K200 K300 K500
Nominal Capacity (L) 50 100 200 300 500
Total Capacity (L) 104 180 338 483 743
Calculated Capacity (Notes 1) (L) 71 128 247 369 588
Jacket Capacity (L) 21 32 57 92 130
Heat Exchange Area (m2) 0.53 0.85 1.26 1.75 2.64
Reference Weight (kg) 310 380 595 795 985
Dimensions d1 500 600 700 800 900
d2 600 700 800 900 1000
d3(Notes 2) 872 987 1087 1188 1288
d4 420 520 620 720 810
d5 300 300 400 500 500
h1 400 500 700 800 1000
h2 280 310 355 390 415
h3 220 250 270 280 280
h4 300 340 370 390 400
h 1800 1920 2450 2725 2955
B 250 250 250 250 270
Φ 24 24 24 24 24
Vessel Nozzle DN a 80 80 125 125 150
b 65 65 100 100 100
c 65 65 65 65 65
d 65 65 80 80 80
e1 65 65 65 65 80
e2 / / 65 65 80
f 65 65 80 80 100
g / / 65 65 125
Jacket Nozzle DN k1 20 20 25 25 32
k2 20 20 25 25 32
k3 20 20 25 25 32
K4 20 20 25 25 32
m G3/8'' G3/8'' G3/8'' G3/8'' G3/8''
Drive DN 40 40 50 65 65
h5 980 980 1250 1400 1400
Notes 1: Calculated Capacity:Volume under highneck flange.
Notes 2: Support types could be determined by users;Without special request,lugs would be normally applied.

K1000L-K6300L Design Drawing (Plan View)
  Internal Vessel Jacket
Design Pressure
(MPa)		 0.4 0.6
Design Temperature
( ℃ )		 -19~200 -19~200
Specifications (Unit:mm)
Model K 1000 K 1500 K 2000 K 3000 K 4000 K 5000 K 6300
Nominal Capacity (L) 1000 1500 2000 3000 4000 5000 6300
Total Capacity (L) 1616 2172 2640 4170 5140 6470 7580
Calculated Capacity (Note 1) (L) 1244 1714 2180 3370 4334 5443 6561
Jacket Capacity (L) 206 340 434 520 670 873 1027
Heat Exchange Area (m²) 4.55 5.76 7.23 9.33 11.85 13.74 16.43
Half-Pipe Coil Heat Exchange Area (m²) 1.8 2.8 3.6 4.0 5.3 7.0 8.4
Reference Weight (kg) 1700 2155 2415 3500 4055 4840 5490
Dimensions (mm) d1 1200 1300 1300 1600 1600 1750 1750
d2 1300 1450 1450 1750 1750 1900 1900
d3 (Note 2) 1638 1915 1915 2221 2221 2412 2412
d4 1080 1180 1180 1440 1440 1580 1580
d5 700 700 700 800 800 850 850
h1 1200 1400 1830 1810 2290 2410 2875
h2 495 520 520 605 605 642.5 642.5
h3 290 330 330 340 340 340 340
h4 600 650 650 700 700 700 700
h 3445 3660 4010 4280 4745 4900 5470
B1 315 315 315 315 315 350 350
B2 350 400 400 450 450 500 500
Φ 30 30 30 30 30 30 30
Vessel Nozzle DN (mm) a 300x400 300x400 300x400 300x400 300x400 300x400 300x400
b 125 125 125 150 150 150 150
C 100 100 100 100 100 125 125
d 100 100 100 100 100 125 125
e 100 125 125 125 125 125 125
f 125 125 125 125 125 150 150
g 100 100 100 100 100 125 125
h 100 125 125 125 125 150 150
  100 100 100 125 125 125 125
Jacket Nozzle DN (Note 3) (mm) k1 32/32 40/50 40/50 50/50 50/50 65/50 65/50
k2 32 40 40 50 50 65 65
k3 32/32 40/50 40/50 50/50 50/50 65/50 65/50
k4 32 40 40 50 50 65 65
m G3/8” G3/8" G3/8” G3/8” G3/8” G3/8” G3/8”
Drive (Note 4) (mm) dN 80 80 80 95 95 95 95
h5 1580 1580 1580 1680 1680 1680 1780

Notes

  • Calculated Capacity
    Volume: Measures the capacity below the high neck flange. This does not include the volume taken up by the flange itself.
  • Support Options
    The type of support used to hold the reactor can be specified by the customer when placing an order. If no preference is indicated, the default support type will be lugs attached to the exterior.
  • k1 and k3 Values
    The dimensions k1 and k3 will vary depending on whether the reactor has a full jacket or half pipe heating/cooling system.
    For a full jacket, use the values listed before the slash (/)
    For half pipes, use the values after the slash (/)
  • Drive Device Parameters
    Reference Only: The provided drive device parameters are for reference purposes.
    Actual Selection: The final selection of the rack reducer type will be determined based on the specific requirements of the application.

  • K8000L Design Drawing (Plan View)
  • K10000L-K16000L Design Drawing (Plan View)
  Internal Vessel Jacket
Design Pressure
( MPa )		 0.2 0.6
Design Temperature
( ℃ )		 -19~200 -19~200
Specifications (Unit:mm)
Model K 8000 K10000 K12500 K16000
Nominal Capacity (L) 8000 10000 12500 16000
Total Capacity (L) 10380 12870 15380 18500
Calculated Capacity (Note 1) (L) 8897 10930 13440 16000
Jacket Capacity (L) 1724 1940 2324 2500
Heat Exchange Area (m²) 19.6 21.54 26.5 28.0
Half-Pipe Coil Heat Exchange Area (m²) 9.4 10.5 12.4 14.5
Reference Weight (kg) 7560 8380 9950 12550
Dimensions (mm) d1 2000 2200 2200 2400
d2 2200 2400 2400 2600
d3 (Note 2) 2763 2964 2964 3238
h1 3000 3060 3720 3740
h2 710 770 770 825
h3 380 400 400 460
h4 830 850 850 900
h 5930 6010 6690 6850
B1 400 470 470 470
B2 700 700 700 700
Φ 36 36 36 36
Vessel Nozzle DN (mm) a 125 150 150 150
C 300x400 300x400 300x400 450
d 200 200 200 200
e1 200 200 200 200
e2 150 200 200 200
g1 150 150 150 150
g2 150 150 150 150
g3 150 150 150 150
g4 / 150 150 150
S 125 125 125 125
k 125 125 125 125
Jacket Nozzle DN (Note 3) (mm) b1 65/65 80/65 80/65 100/65
b2 65 80 80 100
b3 65/65 80/65 80/65 100/65
b4 65 80 80 100
m G3/4” G3/4” G3/4” G3/4”
n G1/2” G1/2” G1/2” G1/2”
Drive (Note 4) (mm) dN 110 110 110 110
h5 2000 2000 2020 2090

Notes

  • Calculated Capacity
    Volume: Measures the capacity below the high neck flange. This does not include the volume taken up by the flange itself.
  • Support Options
    The type of support used to hold the reactor can be specified by the customer when placing an order. If no preference is indicated, the default support type will be lugs attached to the exterior.
  • b1 and b3 Values
    The dimensions b1 and b3 will vary depending on whether the reactor has a full jacket or half pipe heating/cooling system.
    For a full jacket, use the values listed before the slash (/)
    For half pipes, use the values after the slash (/)
  • Drive Device Parameters
    Reference Only: The provided drive device parameters are for reference purposes.
    Actual Selection: The final selection of the rack reducer type will be determined based on the specific requirements of the application.
Related products
Glass-Lined Reactor, F Type
Glass-Lined Reactor, F Type
Glass-Lined Reactor
Glass-Lined Reactor
Glass-Lined Storage Tank, K Type
Glass-Lined Storage Tank, K Type
Electric Heated Glass-Lined Reactor
Electric Heated Glass-Lined Reactor
Send Message
Other Products
Continuous Stirred Tank Reactor
Continuous Stirred Tank Reactor
Insulated Glass
Insulated Glass
Household Glass, Glass Furniture
Household Glass, Glass Furniture

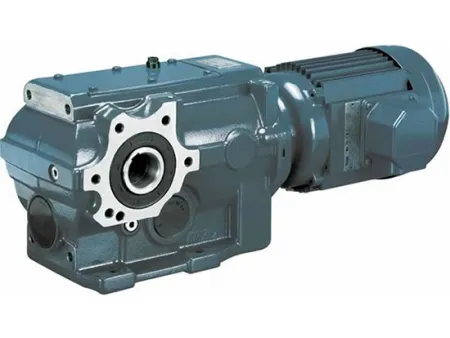

K Series Bevel Gear Speed Reducer
