GLR-5

Reaction vessel for the production of API (active pharmaceutical ingredients)

5 m³ Vessel Volume
85 RPM Agitator Speed

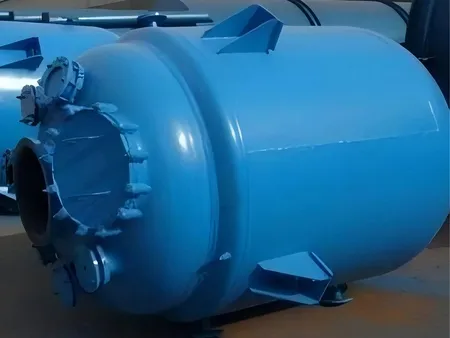

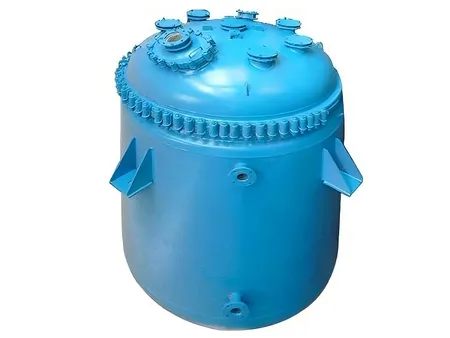

The glass-lined reactor is a container constructed with high-quality carbon steel as the base and lined with a special silicate glass layer, fused at nearly 800°C. This design combines the mechanical strength of a steel vessel with superior corrosion resistance, offering durability under specific media and temperature conditions. Its corrosion-resistant properties surpass those of stainless steel, engineered plastics, and alloy steel, making it an essential equipment for processes such as hydrolysis, neutralization, crystallization, distillation, evaporation, and storage.

Widely used in industries including pharmaceuticals, chemicals, dyes, organic synthesis, food, pesticides, and defense, the glass-lined reactor is an economical and reliable solution for production processes requiring high corrosion resistance.

Specifications

Electric Heater Power	300kW
Motor Power	12kW
Agitator Speed	85rpm
Structure	Closed
Connection	Flat flange lid
Sealing Type	Mechanical sealing
Inner Diameter	900mm
Vessel Diameter	1100mm
Vessel Volume	5m³
