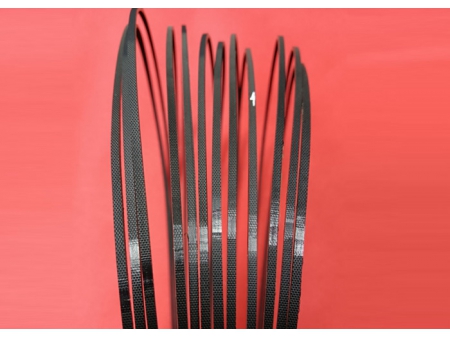

High-performance Flexproof Power Transmission Belt
Request a Quote
These high-performance power transmission belts are flat belts with polyester fabric tension members, the structure of which is equivalent that of conveyor belting, featuring lightweight, thin cross-section, very low elongation, high dimensional stability and excellent resistance to fatigue and impact.
Our reinforced polyester flat belts are characterized by better transverse stiffness and higher impact resistance, as well as properties of the standard polyester power transmission belt.
Features
- Combining high strength of polyamide plate based flat belt with high flexibility of light conveyor belt that has small pulley diameter;
- Good wear resistance;
- Not affected by ambient temperature and humidity, high dimensional stability without deformation;
- Flexproof joining method offers smooth splice, allowing for pulling in both directions and fast installation;
- High energy efficiency:
1) High grip force of belt surface: can ensure constant running speed with lower belt tension, therefore producing small bearing loads;
2) Steady belt tension: no slipping, no overloading, and constant belt speed;
3) More flexible: significantly reduced consumption of power used for belt bending;
4) Lightweight: less power to overcome the inertia;
- Flexproof Power Transmission Belt (Tangential Belt), RER20/22EF - TC
- Material: 2 plies of nitrile butadiene rubber (NBR), 1 ply of polyethylene terephthalate (PET)
- Construction: NBR / PET / NBR
- Thickness: 2.2mm (±0.1mm)
- Color: light green / black
- Min. pulley diameter: 35mm
- Tensile force for 1% elongation (after running-in): 10.0 N/mm
- Mass (belt weight): 2.4kg/m²
- Working temperature: -20 to 70℃
- Antistatic property: yes
- Standard belt width: 500mm
- Joining method: Flexproof (adhesive-free joint)
- Flexproof Power Transmission Belt (Tangential Belt), RER35/30ER - TC
- Material: 2 plies of nitrile butadiene rubber (NBR), 1 ply of polyethylene terephthalate (PET)
- Construction: NBR / PET / NBR
- Thickness: 3.0mm (±0.1mm)
- Color: light green / black
- Min. pulley diameter: 50mm
- Tensile force for 1% elongation (after running-in): 18.0 N/mm
- Mass (belt weight): 3.5kg/m²
- Working temperature: -20 to 70℃
- Antistatic property: yes
- Standard belt width: 500mm
- Joining method: Flexproof (adhesive-free joint)
