Standard Hopper Dryer

Request a Quote

View All: http://plastics-machines.com/1-1-hot-air-hopper-dryer.html

SHD-E

Drying hopper for processing raw plastic granules

Designed to dry a variety of non-hygroscopic plastics such as PS, PP, and ABS, these hopper dryers reach a maximum drying temperature of 160°C. They feature several optional enhancements that improve functionality. These include systems for recycling hot air and filtering out impurities like iron particles from raw materials. Additionally, these dryers can be fitted with a stand for convenient floor installation.

Features

Constructed with stainless steel in areas that contact materials to prevent contamination.
Equipped with safety features that cut off power to the heater if the drying temperature exceeds the preset limit, accompanied by a flashing alarm for immediate notification.
Uses heat-insulated blower to increase the longevity of the unit.
Includes a one-week timer and options for intermittent running, enhancing operational flexibility.
Each model comes with a built-in thermal overload protector for the blower to ensure safe operation.

Specifications

Model SHD-	12E	25E	50E	75E	100E	150E	200E	300E	400E	500E	600E
Drying heater (kW)	2.2/3*	3/3.3*	3.9/4.2*	4.2/4.8*	6/6.6*	6.6/7.2*	12/15*	15	18	19.5	21
Blower (kW)	0.1	0.17	0.17	0.17	0.2	0.2	0.35	0.35	0.45	0.45	1.03
Loading capacity (kg)	12	25	50	75	100	150	200	300	400	500	600

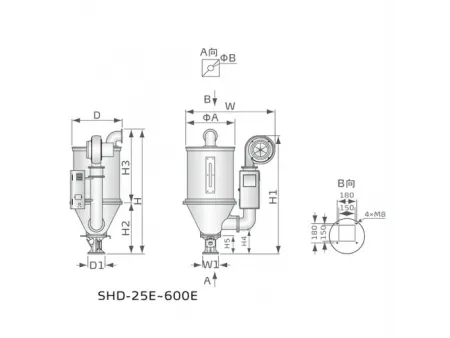

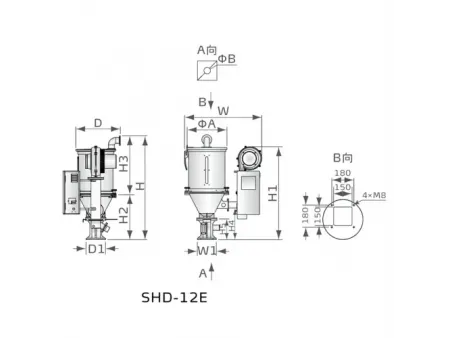

H(mm)	801	989	1112	1247	1316	1636	1852	2272	1933	2383	2174
H1(mm)	676	878	924	937	1151	1151	1573	1573	1609	1609	2054
H2(mm)	321	396	452	463	536	536	634	634	713	713	821
H3(mm)	480	593	660	784	780	1101	1218	1638	1220	1670	1354
H4(mm)	165	196	204	213	255	255	287	287	287	287	344
H5(mm)	107	150	150	150	173	173	194	194	205	205	245
W(mm)	646	728	787	874	996	996	1183	1183	1339	1339	1510
D(mm)	342	413	508	555	627	627	753	753	893	893	1033
D1(mm)	108	158	158	158	177	177	230	230	280	280	280
Wl(mm)	108	148	148	148	177	177	230	230	280	280	280
⌀A(mm)	327	383	478	535	602	602	745	745	897	897	1050
⌀B(mm)	42	53	53	53	81	81	110	110	116	116	130
Weight (kg)	23	25	37	39	55	56	113	116	132	134	205

Mounting Type

SHD-E Direct Mounting

SHD-E Floor Stand Mounting

Low-speed granulator

30-second quick recycling system

Vacuum hopper

Circulating air system

Dehumidified air system

Vacuum pipe

Material pipe

Material storage tank

Vacuum hopper loader

Honeycomb dehumidifier

Dual material proportional valve

Hopper with photoelectric sensor

Optional Configurations

High temperature model (180°C)
Magnetic base
RS485 communication interface
24V microcomputer control
Three-color warning light
Intelligent energy-saving system
Insulated hopper

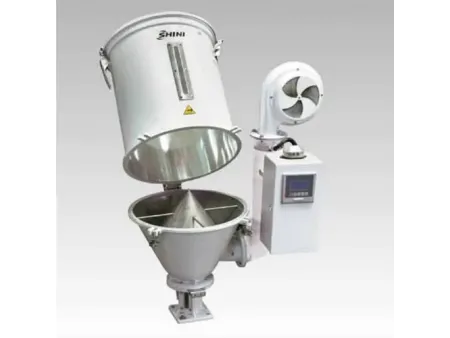

Construction

Air outlet
Blower
Control box
Hot air pipe
Shade separator
Screen separator
Drying hopper

Accessories

Hot Air Recycler
The hot air recycler is engineered to integrate with hopper dryers, facilitating a semi-enclosed circuit for hot air circulation. This drying system offers significant advantages:

It recycles hot air within the system, effectively preventing significant increases in room temperature, which can be critical in maintaining operational efficiency.
By maintaining cleaner air within the facility, it helps ensure the quality of the products manufactured, directly impacting final product standards.
The system heats quickly and minimizes heat loss, offering substantial energy savings—up to 40% compared to traditional methods, making it both cost-effective and environmentally friendly.

Air Exhaust Filter
The air exhaust filter is designed to filter out dust air discharged from the dryer, ensuring the air remains clean with an efficiency of up to 99%. This filter not only prevents environmental contamination but also enhances workplace safety and compliance with air quality standards

Magnetic Base
Blower Inlet Filter
Hopper Magnet
Suction Box
Suction Box
N-type Floor Stand
