SHD-U

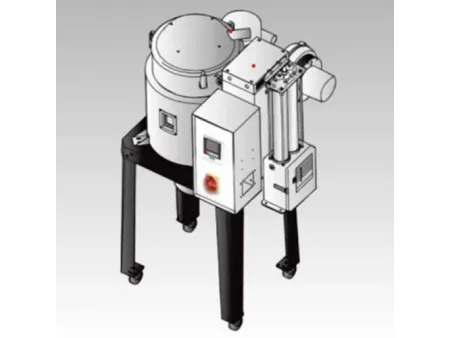

Double layer insulated drying hopper for processing non-hygroscopic plastics

Designed for efficient drying operations, this insulated hopper dryer is ideal for processing most non-hygroscopic plastic materials, ensuring high-quality outcomes in final molded products. Its compact design allows for convenient placement near the feed entrance of molding machines, with options for both floor-standing and mobile installations to accommodate various workspace configurations. For environments with limited ceiling height, the floor-standing installation is particularly beneficial. The insulated hopper dryer also offers a range of optional accessories to cater to specific production needs, such as hot air recycling and magnetic stands.

Features

Integrated with a P.I.D. temperature controller, offering precise temperature adjustments and stability, equipped with an LCD status display and RS485 communication interface for streamlined management
Includes a safety feature that reduces the risk of accidents from overheating, automatically cutting power to prevent damage
Features an automatic on/off timer for weekly scheduling, enhancing convenience and operational efficiency
The unique design includes a downward-blowing air bell mouth that disperses hot air evenly, maintaining a stable temperature and increasing drying efficiency
Larger models, such as the SHD-80U and above, come with see-through doors that allow for easy inspection and cleaning
Base models up to SHD-450U include an aluminum base that provides durability and stability
Advanced models from SHD-600U to SHD-750U are fitted with an aluminum magnetic base that enhances installation ease and safety
The SHD-900U and advanced models are equipped with a manual butterfly valve to fine-tune airflow and enhance drying efficiency
Double-layer insulation ensures minimal heat loss and consistent temperatures throughout the drying process
All material contact parts are constructed from stainless steel, preventing contamination and ensuring product purity

Specifications

Model		Drying heater (kW)		Blower (kW)		Loading capacity (L)		Dimensions (mm) H×W×D			Floor stand size (mm) H1×W1×D1		W2	W3		Total height (mm) H2		Height of discharge port (mm) H3		Air inlet pipe (inch)		Air outlet pipe (inch)	Weight (kg)
SHD-20U		2.2		0.05		20		680×575×325			790×450×550					1260		570		2		1.5	40
SHD-40U(-HD)		3		0.12		40		770×770×394			790×580×450					1300		540					70
SHD-80U(-HD)		3.9		0.12		80		940×860×472			840×730×560					1480		550		2.5		2	85
SHD-120U(-HD)		3.9		0.12		120		1190×860×472			840×730×560					1740							100
SHD-230U(-HD)		6		0.12		230		1470×875×575			920×652×795					2105		570		3		2.5	115
SHD-160U		6		0.12		160		1200×875×575			920×652×795					1825							90
SHD-230U		6		0.12		230		1470×875×575			920×652×795					2105							100
SHD-300U		12		0.18		300		1430×1005×695			970×790×930					2085		550					130
SHD-450U		12		0.18		450		1840×1005×695			970×790×930					2435							160
SHD-600U		18		0.55		600		1830×1250×915			1130×1000×1200					2470		605		4		3	200
SHD-750U		18		0.55		750		2080×1250×915			1130×1000×1200					2780							220
SHD-900U		18		0.55		900		2330×1410×1050			2760×1145×1145					2765		425		4		4	410
SHD-1200U		24		1.1		1200		2765×1410×1050			2990×1145×1145					3190							560
SHD-1500U		32		3.7		1500		3095×1640×1250			3470×1340×1340		400	2000		3470		360		5		5	685
SHD-2000U		32		3.7		2000		3685×1542×1250			3870×1340×1340		400	2000		3870							770
SHD-2500U		58		5.5		2500		3735×1798×1400			4000×1482×1482		400	2260		4000		295		8		8	800
SHD-3000U		58		5.5		3000		4135×1798×1400			4400×1482×1482		400	2260		4400							900
SHD-3500U		64		7.5		3500		4535×1798×1400			4800×1482×1482		400	2260		4800							1010
SHD-4000U		64		7.5		4000		4180×2010×1600			4550×1680×1680		400	2460		4635		405		8		8	1160
SHD-5000U		80		11		5000		4775×2010×1600			5150×1680×1680		400	2530		5235		390					1390
SHD-6000U		96		15		6000		4520×2250×1800			4870×1930×1930		400	2780		4923		350					153C
SHD-7000U		115		18.5		7000		5460×2250×1800			5805×1930×1930		400	2830		5840		380					1735
SHD-8000U		128		22		8000		6030×2250×1800			5620×1930×1930		400	2830		6425		390		10		10	1820
Flange Installation
SHD-	20U		40U		80U 120		160U 230U		300U 450U	600U 750U		900U 1200U	1500U 2000U		2500U 3000U		3500U 4000U		5000U 6000U		7000		8000U
⌀A1	231.5		231.5		254.5		254.5		254.5	254.5		254.5	254.5		254.5		254.5		254.5		254.5		254.5
⌀A2												330	330		330		330		330		330		330
⌀B1	140		140		140		210		210	210		210	210		210		210		210		210		210
⌀B2										260
Power: 3φ, 400VAC, 50Hz We reserve the right to change specifications without prior notice.
