Self-Contained Vacuum Hopper Loader
Request a Quote
SAL-330/360
Plastic feeding machine for conveying plastic pellets, regrind and powders to hopper or processing machine
This self-contained vacuum hopper loader is specifically designed to facilitate the efficient transfer of plastic materials such as pellets, regrind, and powders directly to hoppers or processing machines used in injection molding and extrusion processes.
Features
- Stainless steel hopper ensures durability and contamination-free handling with motor overload protection to safeguard the system.
- Equipped with fabric filters and an automatic cleaning system to maintain purity and streamline maintenance.
- Features manual control switches making it easy to operate, especially when installed at elevated locations.
- Includes an RS485 interface to enhance connectivity and integration with other industrial control systems.
Applications

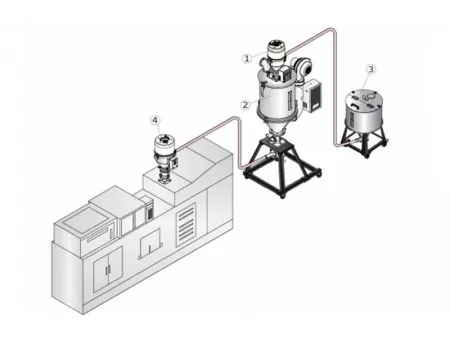

This self-contained vacuum hopper loader is ideally suited for the direct installation on plastic injection molding machines and extrusion machines, or combined with collection hoppers for centralized feeding systems. Once installed, minimal adjustment is required, facilitating continuous and efficient operations.
Specifications
Model | |||||
Blower type | Carbon brush | Carbon brush | Inductive | Inductive | |
Motor power (kW) | 1.15 | 1.15 | 0.37 | 0.75 | |
Conveying pipe diameter (inch) | 1.5 | 1.5 | 1.25 | 1.5 | |
Conveying capacity (kg/hr) | 200 | 300 | 220 | 300 | |
Hopper capacity (L) | 3 | 6 | 3 | 6 | |
Material level control | Microswitch | Microswitch | Microswitch | Microswitch | |
Auto-cleaning function | ● | ● | — | — | |
Cloth filter | ● | ● | ● | ● | |
Motor reverse cleaning function | — | — | ● | ● | |
Dimensions | H(mm) | 610 | 670 | 660 | 735 |
W(mm) | 345 | 385 | 310 | 350 | |
D(mm) | 355 | 380 | 430 | 455 | |
L(mm) | 210 | ||||
L1(mm) | 180 | ||||
L2(mm) | 146 | ||||
Weight (kg) | 13 | 14 | 23 | 26 | |
Notes: 1) Test conditions of conveying capacity: Plastic material of 0.65kg/L in bulk density and 3-5mm in diameter Vertical conveying height: 4m Horizontal conveying distance: 1m 2) "●" stands for standard, "〇" stands for optional, "—" stands for none 3) Power of SAL-330/360: 1φ, 230VAC, 50Hz 4) Power of SAL-430/460: 3φ, 400VAC, 50Hz | We reserve the right to change specifications without prior notice. |
