Reverse osmosis system for drinking water purification

  • Filtration System PCR filter: PP carbon;
    RO filter
  • Purified/Drain Ratio 2:1 pure to drain
  • Customizable FunctionsFaucet style
    Various purified water flow (400 GPD-600 GPD)
  • Features High flow with tankless and slim design
    High filtered water yield
    Integrated water manifold module, high-quality assurance
    Intelligent control: auto flushing, filter life indication, fault alert
    Composite filter development, reducing cost and facilitating filter replacement
    Long service lifespan of RO filter, significantly reducing the cost of use
    Low operating noise (less than 55dBA)
  • Optional Faucet Types Single-handle faucet
    Double-handle faucet
    LED ring faucet
    Smart display faucet

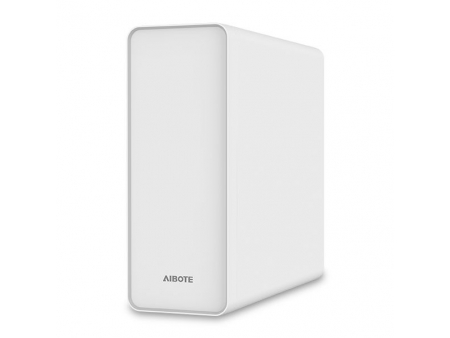

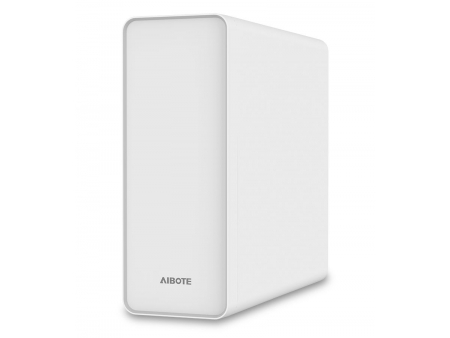

Mini RO water filter system is sometimes called compact undersink RO water filtration system since it is small in size and more affordable in comparison to other types of undersink water filters used in kitchen. With a filter element configuration of PPC RO, this mini RO water filter system can work with single-handle faucet or single-handle smart display faucet to deliver purified water, with a flow rate ranging from 400 to 600 GPD.

Model Options
  • Model AW-RL01
  • Mini RO Water Purifier (tankless reverse osmosis system)
  • Model AW-RL02
  • Mini RO Water Purifier (tankless reverse osmosis system)
Specifications
RO flow available 400GPD 600GPD
Power 60W 80W
Voltage 24V 24V
Purified water flow rate 1.04L/min 1.56L/min
RO permeate: drain 2:1
Filtration stages 3

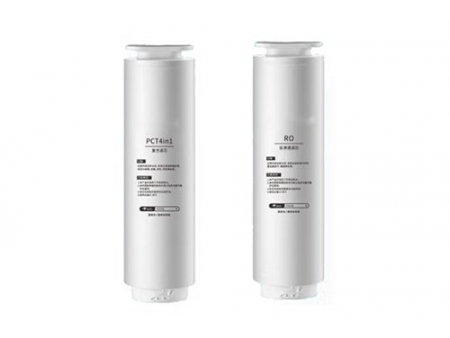

First filter service life PPC (PP cotton carbon)/9-15months
second filter service life RO (Reverse Osmosis)/30-48months
Min. input water pressure 0.1Mpa
Max. input water pressure 0.4Mpa
Working pressure 0.4-0.8MPa
Inlet water quality Municipal water
Inlet water temperature 5-38℃
Water output capacity Single outlet: 6000L
Ambient temperature 4-40℃
Installation Under the sink
Gross weight 10.5kg
Product size 347*120*310mm
Carton size 695*192*465mm
Container (20FT/40GQ/40HQ) 510pcs/1035pcs/1178pcs
The above data is obtained from our laboratory test results.
Due to the difference in water quality and water consumption, the replacement cycle of the filter element will be different, depending on the actual use.
Details

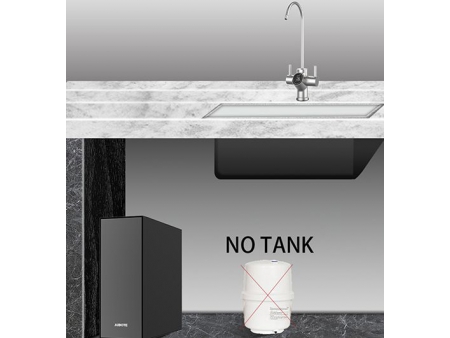

Compact and tankless design preserves enough under-sink storage space for other items.

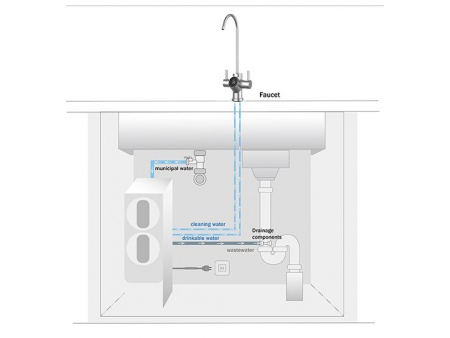

Easy installation, DIY filter replacement

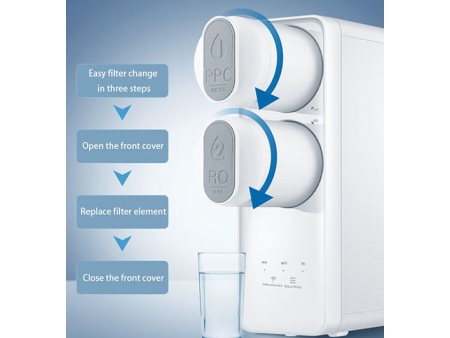

Easy replacement of filter cartridge

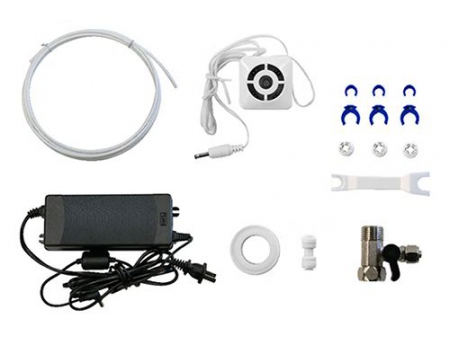

Accessories
