NC-A Desktop CNC Router
Request a Quote
CNC Router Machines for Woodworking, Plastic, Composite, and Stone Industries
The NC-A desktop CNC router machine is small and compact. Its spindle power is 1500W and positioning accuracy is within 0.01mm. It can engrave and cut small handicrafts made from wood, PVC or other materials with extremely high precision. The equipment is very easy to operate, your workers can get started and fully mastered the CNC router quickly.
Applicable Materials: solid wood, medium density fiberboard, acrylic, PVC, marble, rubber, metal
Functions: engraving, carving, cutting, hollow carving
Technical parameters for available models
According to different size of materials, you can choose from following three models. The A6090 CNC router machine is equipped with transducer and water pump, so it can meet the higher processing requirements.
| Model | NC-A3636 | NC-A4040 | NC-A6090 |
| Spindle Power | 1500W | ||
| Working Size | 360mm*360mm*120mm | 400mm*400mm*120mm | 600mm*900mm*150mm |
| Motion Control | High-speed micro stepper motors | ||
| Transducer | \ | \ | 1.5kw |
| Water Pump | \ | \ | Yes |
| Maximum Working speed | 6000mm/min | ||
| Spindle Speed | 0-24000rmp./min | ||
| Voltage | 220V, 50/60 Hz | ||
| Positional Accuracy | 0.01mm | ||
| X and Z-axis Bearings | Circular guide rail and ball screw | ||
| Y-axis Bearings | Square guide rail ball screw | ||
| Support Code | G Code | ||
| Control System | DSP | DSP | DSP/NC Studio |
| Connection Port | USB | ||
| Operating Temperature | 0-45 ℃ | ||
| Operating Humidity | 30% - 75% | ||

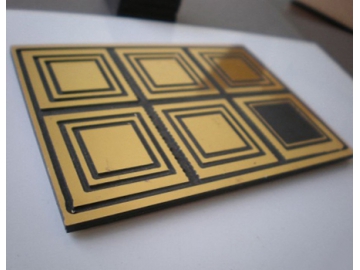

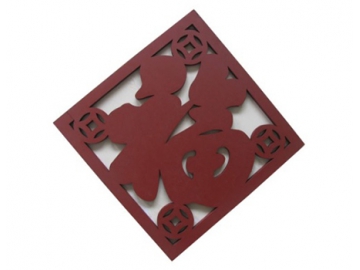

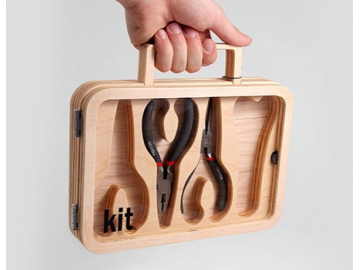

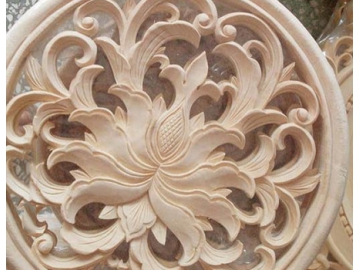

Samples
Features
- The body of NC-A Desktop CNC router machines is made from cast iron; it’s durable and stable.
- It has an aluminum alloy working table with T-shaped grooves, is convenient to locate the workpiece, which makes it especially suitable for processing irregular shaped workpieces.
- The spindle is driven by ball screw, uses high-speed micro stepper motors to control the motion to ensure high processing precision.
- Its default configuration is 3 axis, which can be upgraded to 4 axis according to customer need to meet higher requirements.
- Additional cutting tools are optional.
