NC-RA CNC Router with Vacuum Table Manufacturer

NC-RA CNC Router with Vacuum Table

Request a Quote

View All: http://lasercutter-engraver.com/3-7-cnc-router-with-vacuum-table.html

The NC-RA CNC router with vacuum table performs with high working efficiency, its maximum working speed reaches 6000mm/min. This machine is designed for processing large scale wood planks. This machine features vacuum pumps which can vacuum lift workpieces firmly onto the working table to quicken the feeding process. No pre-cutting is required for this machine, which improves the cutting speed and processing efficiency significantly, and reduces the worker's operation time.

Applicable Materials: solid wood, medium density fiberboard, acrylic, PVC, marble, rubber, metal

Functions: engraving, carving, cutting, hollow carving

Technical parameters for available models

Model	NC-R1325A	NC-R1530A	NC-R2030A	NC-R2040A
Spindle Power	3.0kW /4.5kW	3.0kW /4.5kW	3.0kW /4.5kW	3.0kW /4.5kW
Working Size	1300mm2500mm200mm	1500mm3000mm200mm	2000mm3000mm200mm	2000mm4000mm200mm
Motion Control	High-speed micro stepper motors/Servo motor	High-speed micro stepper motors/Servo motor	High-speed micro stepper motors/Servo motor	High-speed micro stepper motors/Servo motor
Transducer	3.7kW/5.5kW	3.7kW/5.5kW	3.7kW/5.5kW	3.7kW/5.5kW
Vacuum Pump	5.5kW	5.5kW/7.5kW	7.5kW	7.5kW
Dust Collector	3.0kW	3.0kW	3.0kW	3.0kW
Maximum Working Speed	6000mm/min	6000mm/min	6000mm/min	6000mm/min
Spindle Speed	0-24000rmp./min	0-24000rmp./min	0-24000rmp./min	0-24000rmp./min
Voltage	220V, 50/60Hz	220V, 50/60Hz	220V, 50/60Hz	220V, 50/60Hz
Positional Accuracy	≤±0.01mm	≤±0.01mm	≤±0.01mm	≤±0.01mm
X,Y and Z-axis Bearings	Square guide rail and rack	Square guide rail and rack	Square guide rail and rack	Square guide rail and rack
Support Code	G Code	G Code	G Code	G Code
Control System	NC Studio/ DSP	NC Studio/ DSP	NC Studio/ DSP	NC Studio/ DSP
Software	Artcam	Artcam	Artcam	Artcam
Connection Port	USB	USB	USB	USB
Operating Temperature	0 -45 ℃	0 -45 ℃	0 -45 ℃	0 -45 ℃
Operating Humidity	30% - 75%	30% - 75%	30% - 75%	30% - 75%
Weight	1400kg	1800kg	2000kg	2300kg
Size	320022001850mm	380022001850mm	420022001850mm	520022001850mm

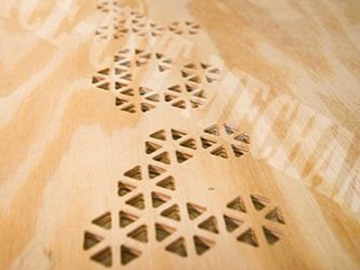

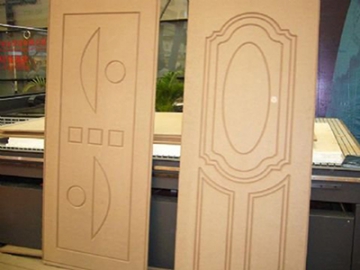

Samples

Features

The NC-RA CNC router uses high-speed micro stepper motors for motion control, which makes it run more steadily.
It uses square guide rail and rack in 3 axis bearing which makes it more efficient in transmission and can run in a high speed.
Its default configuration is 3 axis, which can be upgraded to 4 axis according to customers’ need to meet higher requirements.
This CNC router machine is welded by thick square pipes, which is lightweight and has good resistance to deformation.
Additional cutting tools are optional.
