Spiral Silo Making Machine
Used for the construction of steel cylindrical silos
The design of this spiral silo making machine aims at manufacturing premium quality steel spiral-fold silo. It can accomplish multiple processes including uncoiling galvanized steel coils, shaping the steel strips into a profile, and folding adjoining edges of steel strips together, therefore, ultimately forming the body of a spiral silo. Spiral silo making machine mainly consists of uncoiling unit (feeder), silo steel strip forming machine (profiling), double folding machine, load-bearing supporting unit and so on.
- Galvanized steel coils
- Nickel-plated steel coils
- Stainless steel coils
- Aluminum alloy coils
- Metal composite coils
- Mild steel coils black
- Plastic-coated metal coils
| Model | Steel strip width | Steel strip thickness | Effective height of profiled strip | Spiral convex rib width |
SM30 | 495mm | 2.0--3.0mm | 390mm | 28--30mm |
SM40 | 495mm | 2.5--4.0mm | 365--370mm | 36--38mm |
SM50 | 625mm | 3.0--5.0mm | 465--475mm | 40--42mm |
SM60 | 750mm | 3.0--6.0mm | 560--565mm | 45--50mm |
- Manufacturers and suppliers of spiral steel silos
- Contractors for steel storage silo projects
- Construction service providers for silo storage projects
- Agricultural industry grain storage silos, oil silos, feed silos
- Medical industry pharmaceutical storage tanks
- Brewing industry wine storage tanks
- Construction industry aggregate silos, cement silos, fly ash silos, gypsum powder storage silos, calcined petroleum coke storage silos
- Environmental protection industry wastewater storage tank
- Other industries steel desulfurization storage silos, natural gas storage silos, fire water tanks and so on
The steel coils are unrolled by uncoiling unit. Then the steel strips are shaped in the silo steel strip forming machine, and two adjoining edges are joined together by the double folding machine in order to form double fold joints. Following these procedures, the steel coils are ultimately formed into the body of steel silos.

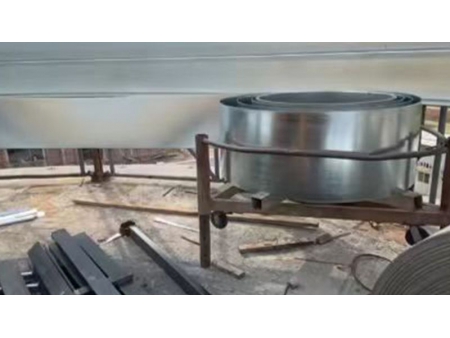

The uncoiling unit smoothly unrolls the galvanized steel coils for feeding steel strips to the forming machine.

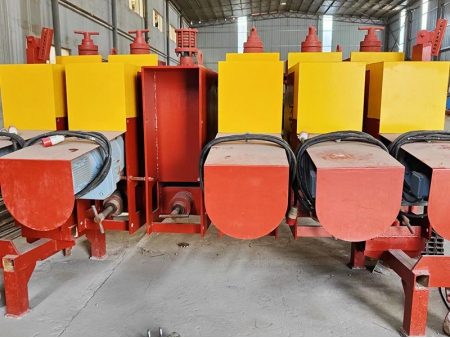

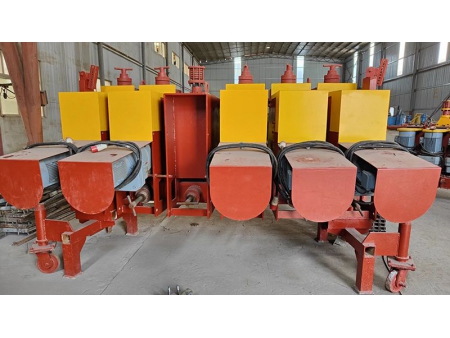

The silo steel strip forming machine forms galvanized steel strips into specific shapes using different forming rolls. The steel strips unrolled by uncoiling unit gets shaped in the forming machine, and then moves to the double folding machine for further work.

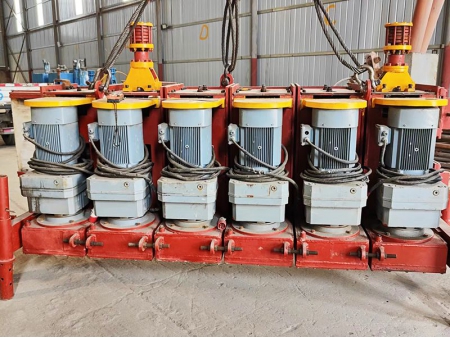

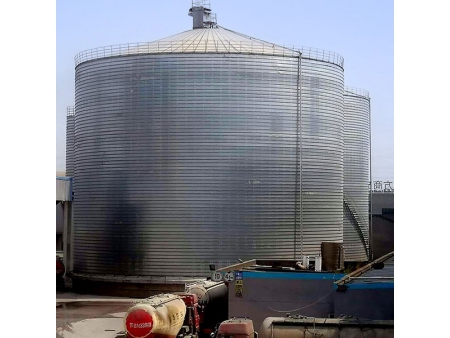

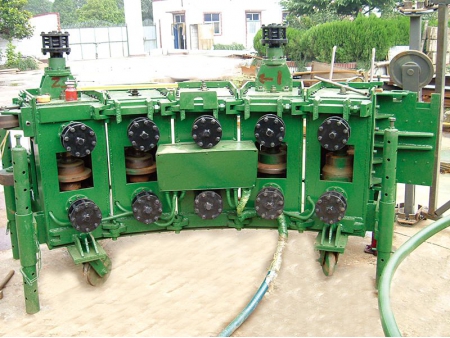

The double folding machine folds and connects the two edges of the galvanized steel strips, which have been shaped into the desired geometrical shape. Then the strips are folded together tightly, and continuously conduct revolution while growing higher in a spiral path to form the body of steel spiral silo.
The steel coils are unrolled by uncoiling unit. Then the steel strips are shaped in the silo steel strip forming machine, and two adjoining edges are joined together by the double folding machine in order to form double fold joints. Following these procedures, the steel coils are ultimately formed into the body of steel silos.
We do not consider ourselves as a specialist manufacturer of spiral silo making machines, but far more as a particularly spiral silo project contractor with the ability to provide silo system solution.
Our silo machine is used in our customers’ silo construction projects, and we continuously improve machine performance based on construction experience, permitting superior performance of our spiral silo machines. Thanks to the excellent performance, we have received numerous positive feedback from our customers.

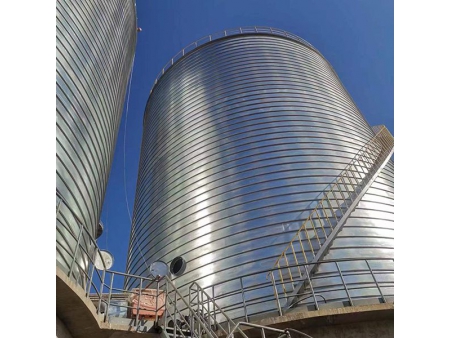

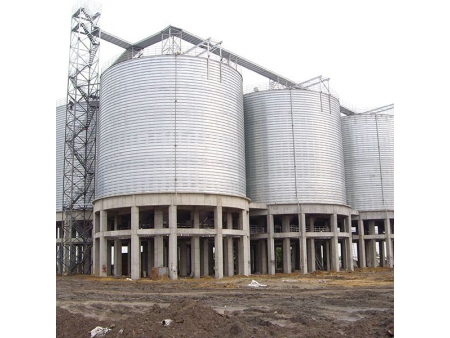

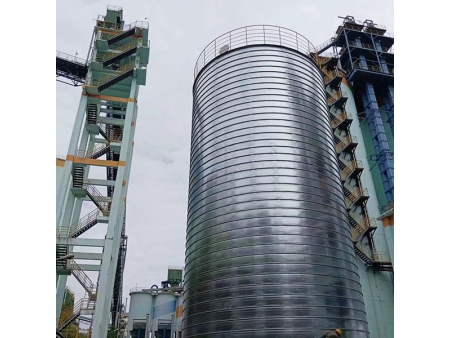

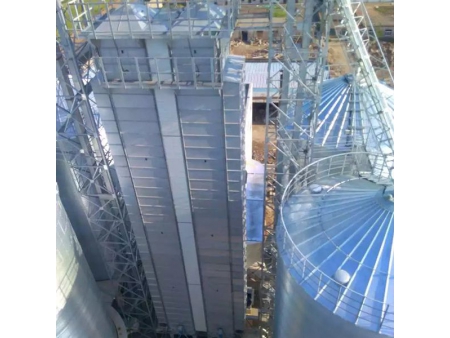

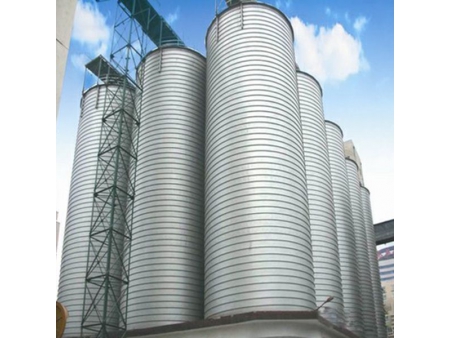

- Grain silos
- Wheat silos
- Corn silos
- Flour silos

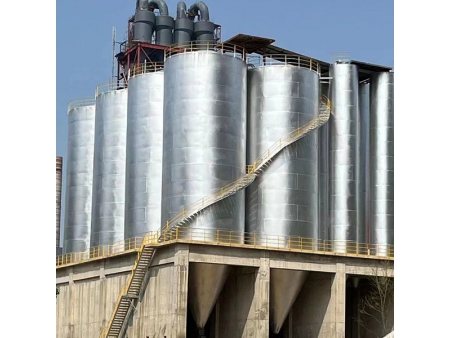

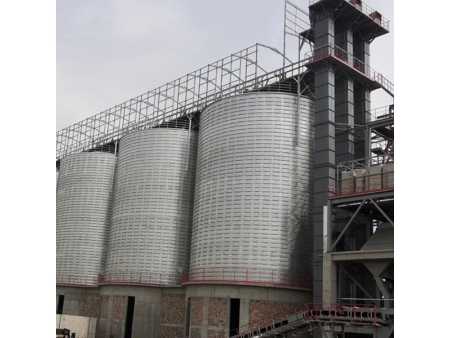

- Cement silos
- Lime silos
- Fly ash silos
- Slag silos
