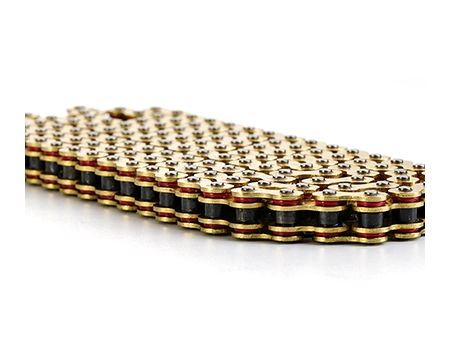

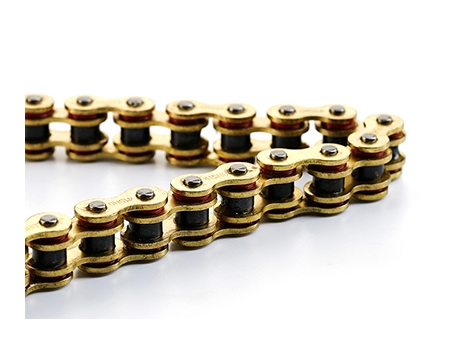

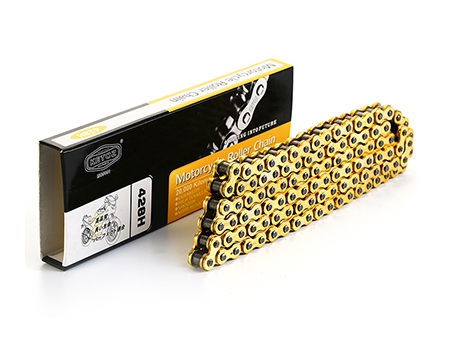

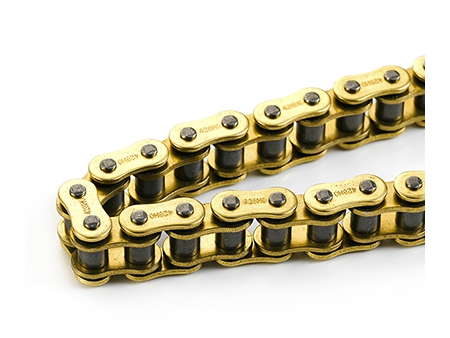

Standard Roller Chain for Street Motorcycle
The standard non-sealed motorcycle chains are our proud roller chains of high precision, engineered for the drive system of the rear wheel in the street motorcycles. All our standard motorcycle chains have been pre-stressed and pre-stretched from the factory to minimize stretch and obtain excellent performance within service life.
Features
- Long miles thanks to high-quality material, seamed steel pipe and 20CrMnMo bush
- Resistance to impact from the solid 10-grade-steel-made roller
- Increased tensile strength from 30CrMnTai pin
- Good fatigue resistance due to 45Mn plates
- Wear assistance delivered by highly adhesive lubricants
Application
Street motorcycles and on-road motorcycles
Specifications
DIN ISO Chain No. | Pitch | Bush type | Roller Dia max mm | Width min mm | Pin Dia max mm | Plate Thickness mm | h2 max mm | Pin Length max mm | Tensile KN | A.T.S KN | Weight kg/m | |
mm | inch | |||||||||||
415 | 12.7 | 1/2" | Curled | 7.77 | 4.76 | 3.96 | 1.2 | 10.3 | 12.15 | 9 | 10.8 | 0.33 |
420 | 12.7 | 1/2” | Curled | 7.77 | 6.35 | 3.96 | 1.5 | 12 | 14.75 | 16 | 19.2 | 0.55 |
428 | 12.7 | 1/2" | Curled | 8.51 | 7.75 | 4.45 | 1.6 | 11.8 | 16.85 | 17.8 | 21.36 | 0.69 |
520 | 15.875 | 5/8” | Curled | 10.16 | 6.35 | 5.08 | 2.03 | 15 | 17.3 | 26.5 | 31.8 | 0.89 |
525 | 15.875 | 5/8" | Curled | 10.16 | 7.94 | 5.08 | 2.03 | 15 | 19.4 | 26.5 | 31.8 | 1.06 |
530 | 15.875 | 5/8" | Curled | 10.16 | 9.5 | 5.08 | 2.03 | 15 | 20.5 | 26.5 | 31.8 | 1.06 |
415H | 12.7 | 1/2" | Curled | 7.77 | 7.76 | 3.96 | 1.5 | 12 | 13.4 | 16 | 19.2 | 0.5 |
420H | 12.7 | 1/2" | Curled | 7.77 | 6.35 | 3.96 | 1.7 | 12 | 15.7 | 17 | 20.4 | 0.63 |
428H | 12.7 | 1/2" | Curled | 8.51 | 7.94 | 4.45 | 2.03 | 11.8 | 18.7 | 20.6 | 24.72 | 0.79 |
520H | 15.875 | 5/8" | Curled | 10.16 | 6.35 | 5.08 | 2.42 | 15 | 18.8 | 26.5 | 31.8 | 1.1 |
525H | 15.875 | 5/8" | Curled | 10.16 | 7.94 | 5.08 | 2.42 | 15 | 20.5 | 26.5 | 31.8 | 1.2 |
530H | 15.875 | 5/8" | Curled | 10.16 | 9.5 | 5.08 | 2.42 | 15 | 22 | 32.8 | 39.36 | 1.24 |
