HCR6-E16 Machine Knitting with Two Needle Beds, Knitting Machine
Application:

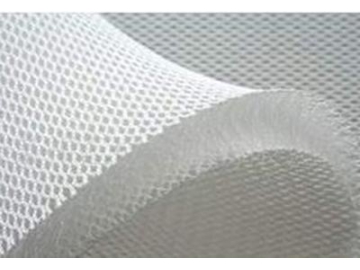

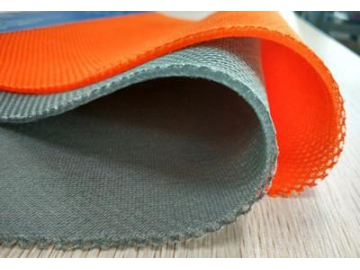

HCR6-E16 fabric warp knitting machines with double needle beds are a Raschel warp knitting machine. This knitting equipment is used to knit various types of 3D spacer fabric, which will be used in 3D mattresses, 3D pillows, cushions, shoes, clothing and more.
Suitable raw materials:
Chemical fiber raw materials like polyester, nylon, acrylic fiber, viscose and spandex or natural fiber raw materials such as worsted cotton yarn
| Product | Raschel warp knitting machine with multi-bar |
| Needle type | Latch needle |
| Needle gauge | E16, E22, E24 |
| Working width | 2413mm (95"), 3505mm (138") |
| Number of guide bars | 6 ground guide bars |
| Form of warp let-off | Electronic positive let-off, Customized beam warping parameters (EBC) |
| Range of E-positive warp let-off | 3~30mm/course |
| Density tuning method | Digital controlled, PC touch screen operation (EBA) |
| Maximum batching diameter | 1200mm |
| Braiding method | EL electronic shogging |
| Master shaft speed | 10-300rpm (Frequency control) |
| Dimensions (L*W*H) | 4800×5500×3300 (mm) |
| Total power | 17KW |
| Total weight | Approximately 10000Kg |
| Beam size | Flange | Shaft | Aperture | Width |
| 21" | Φ535 | Φ210 | Φ152 | 540 |
| 30" | Φ762 | Φ210 | Φ152 | 540 |
Main configuration:
6 ground guide bars.
6 beams electronic positive let-off device with embedded knitting needle.
Opening: 3-12mm or 15-28mm.
One EAC electronic traction system.
Servo motor with a variable frequency drive.
Transmission through closed oil tank.

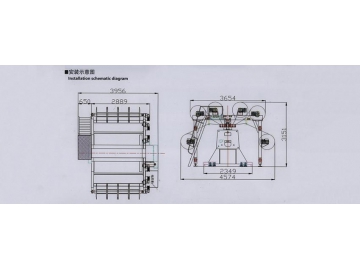

Dimension figure of machine installationFeatures:
1. Fabric warp knitting machines with double needle beds are highly efficient for 3D spacer fabric production. Fabric with 2-28mm spacing stitches are ideal for knitting using this warp knitting machine, done through an opening warp knitting method.
2. The ground guide bars are all equipped with an EL electronic shogging device, which allows for more patterns. Computer touch screen operation is simple, convenient and reliable.
3. The space fabric warp knitting machine uses an electronic positive warp let-off device, customized beaming parameters (EBC) and EAC electronic traction system.
4. Pattern processed with computer software, data transmission through USB.
5. Tension and density tuning are controlled using computer touch screen operation.
6. The spacer fabric warp knitting machine with double needle beds runs perfectly and is easy to operate. Each operator can simultaneously supervise 3 warp knitting machines.
7. We provide a one-year warranty along with installation and free training.
8. This HCR6-E16 warp knitting machine is CE certified.
9. We provide long-term sample analyzation and technical support.
