Vertical Form Fill Seal Machine, DC-338
The DC-338 high-speed vertical packaging machine is an ideal solution for automatically forming, filling and sealing liquids, viscous liquids (like creams, sauces), powders, particles, and other substances. It is equipped with a rolling device to efficiently create 3-side or 4-side seal pouches.
This sophisticated industrial computer control system allows for easy, precise control of size, speed, and other settings. With a user-friendly LCD touch screen, modifying functions is effortless. As a bonus, optional language prompts make any adjustments comprehensible and straightforward.
Range of options:- DC-338-1
- DC-338-2
- DC-338-3
- DC-338-8
- DC-338A2
- DC-338A3
This versatile DC-338-1 vertical sachet packaging machine is perfect for packaging a variety of viscous liquid products including shampoo, shower gel, cream, emulsion, mask mud, and even honey. It's able to handle the job quickly with speeds of up to 80 sachets per minute, quickly taking care of all your packaging needs.
| Quantity of rollers | Three pairs |
| Bag width | 40-85mm |
| Bag length | 40-120mm or 70-160mm |
| Filling system | Hibar metering pump |
| Packing speed | 30-80 bags/min |
| Applicable products | Shampoo, shower gel, cream, lotion, facial mud, honey, etc. |
| Packaging material | PET/AL/PE, NY/PE, PET/VMPET/PE, PET/PE, NY/VMPET/PE, etc. |

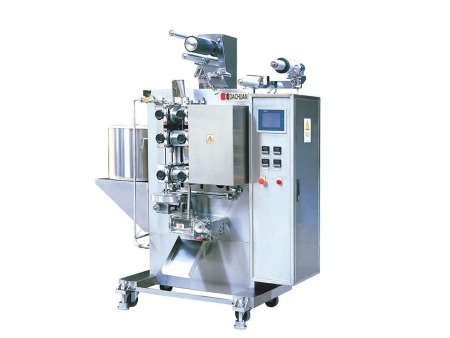

Ideal for packaging any liquid product, the DC-338-2 vertical sachet packaging machine could be widely used for a variety of liquid products. With a rate that ranges from 30 to 80 sachets per minute, this powerful piece of packaging equipment is sure to help you meet your production goals, no matter what you are packaging, including scents, toners, vinegar, wines, and oils.
| Quantity of rollers | Three pairs |
| Bag width | 40-85mm |
| Bag length | 40-120mm or 70-160mm |
| Filling system | Magnetic Pump |
| Packing speed | 30-80 bags/min |
| Applicable products | Perfume, toner, vinegar, alcohol, oil, etc. |
| Packaging material | PET/AL/PE, NY/PE, PET/VMPET/PE, PET/PE, NY/VMPET/PE, etc. |

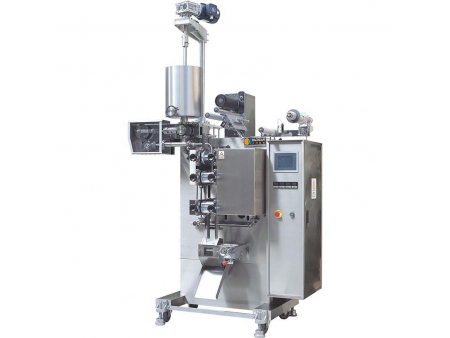

The DC-338-3 vertical sachet packaging machine is designed to handle a wide array of sauces, from ketchup to chili sauce and plum paste, with speed and precision. It is compatible with various packaging materials, and can achieve a rate of 30-80 sachets per minute.
| Quantity of rollers | Three pairs |
| Bag width | 40-85mm |
| Bag length | 40-120mm or 70-160mm |
| Filling system | Rotary Pump |
| Packing speed | 30-80 bags/min |
| Applicable products | Ketchup, chili sauce, plum sauce, etc. |
| Packaging material | PET/AL/PE, NY/PE, PET/VMPET/PE, PET/PE, NY/VMPET/PE, etc. |

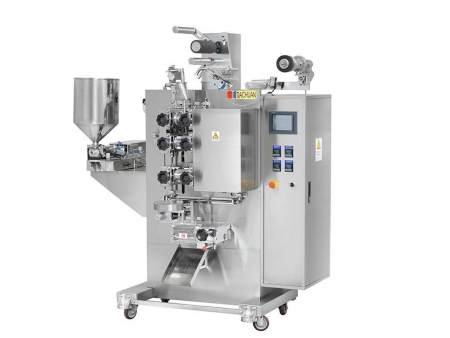

The DC-338-8 vertical sachet packaging machine is the perfect choice for packing up all types of sticky sauces, from tomato sauce and chili sauce to satay sauce. Featuring a flexible design that works with multiple packaging materials, this machine easily reaches speeds of up to 80 sachets per minute.
| Quantity of rollers | Three pairs |
| Bag width | 40-85mm |
| Bag length | 40-120mm or 70-160mm |
| Filling system | Pneumatic rotary pump |
| Packing speed | 30-80 bags/min |
| Applicable products | Ketchup, chili sauce, barbeque sauce etc. |
| Packaging material | PET/AL/PE, NY/PE, PET/VMPET/PE, PET/PE, NY/VMPET/PE, etc. |

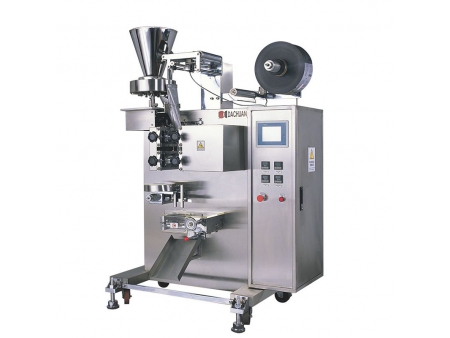

The DC-338 A2 vertical sachet packaging machine is capable of packing granulated sugar, seasoning, and other particle substances. With an adjustable packaging speed of 30 to 80 sachets per minute, this device can work with a host of different packing materials for ultimate convenience.
| Quantity of rollers | Two pairs |
| Bag width | 40-85mm |
| Bag length | 40-120mm or 70-160mm |
| Filling system | Volumetric cup filler |
| Packing speed | 30-80 bags/min |
| Applicable products | Sugar, electuary, spices, etc. |
| Packaging material | PET/AL/PE, NY/PE, PET/VMPET/PE, PET/PE, NY/VMPET/PE, etc. |

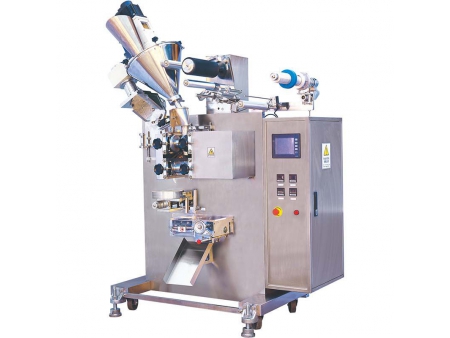

The DC-338 A3 vertical sachet packaging machine is the perfect choice for all of your powder-packaging needs. From coffee to milk powder, medicinal powder, seasoning powder and beyond, it can accommodate a variety of materials with ease. Experience maximum efficiency with a packaging throughput of 30-120 sachets per minute.
| Quantity of rollers | Two pairs |
| Bag width | 40-85mm |
| Bag length | 40-120mm or 70-160mm |
| Filling system | Auger filler |
| Packing speed | 30-120 bags/min |
| Applicable products | Coffee powder, milk powder, pharmaceutical powder, seasoning powder, etc. |
| Packaging material | PET/AL/PE, NY/PE, PET/VMPET/PE, PET/PE, NY/VMPET/PE, etc. |
- Our vertical sachet packaging machine showcases an advanced, leak-proof design. Boasting a heat sealing roller and a cold sealing roller, its two step protection results in a neat and superior finish.
- This specialized load and unload device prevents product from dripping into the sealed bag, enhancing the pressure resistance and leak-proofing of the item. A neat steel character batch number is also stamped onto the product, providing a clear indication of its identity.
- This machine features cutting-edge electric control components, a PLC, and a user-friendly human-machine interface, plus a convenient touch screen interface that makes operation simpler and quicker than ever before.
- Our machine utilizes the highest quality components, featuring renowned names like Siemens PLC and touchscreen, Omron temperature regulators, Schneider switches, and Delta inverters - making it more robust and reliable than ever.

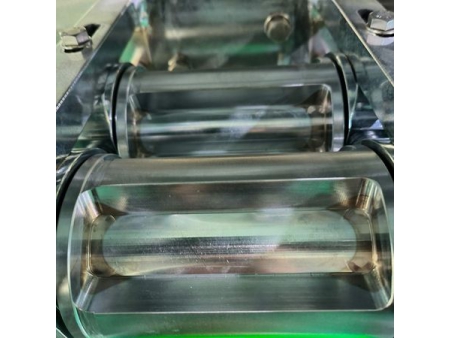

- Transverse sealing roller (heat sealing)
- Pressure gauge
- Longitudinal sealing roller (heat sealing)
