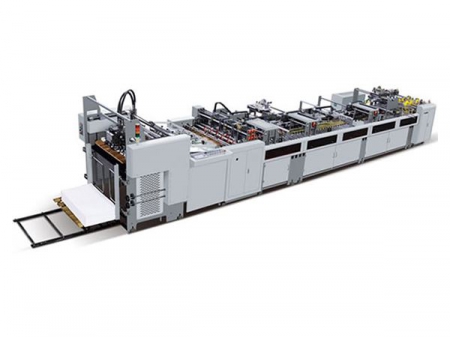

Paper Bag Forming Machine (Sheet Feeding), ZB1300B
Request a Quote
This paper bag forming machine is an ideal choice for batch production of paper bags for middle & high grade product and luxury. It adopts taking special paper, glazed paper, and PE coated paper as raw material, The paper bag making machine ZB1300B is applicable for manufacturing paper bag with single creased paper sheet.
Features
- The automatic feeder for the high speed paper bag making machine is constructed with variable frequency speed controller.
- The front lay and side lay support automatic paper sheet positioning.
- Full automatic, the paper bag forming machine completes gelatinizing, accordion folding, compressing, and paper bag discharging, at one stroke.
- In addition to the patented technologies, our full automatic paper packaging bag forming equipment also employs HMI with touch screen for high accuracy, fast production speed, and convenient control.
- Our paper bag forming machine lays solid foundation for standardized production, through the employment of digital control system.
Specification
| Max. sheet size (L×W) | 1250×600mm |
| Min. sheet size (L×W) | 500×280mm |
| Paper thickness | 100g-350g/m² |
| Bottom width | 55-185mm |
| Total power | 10kW |
| Machine dimension | 12100×2240×1700mm |
| Speed | 100pcs/min |
| Weight | 6 tons |
| Glue | Water-based glue |
