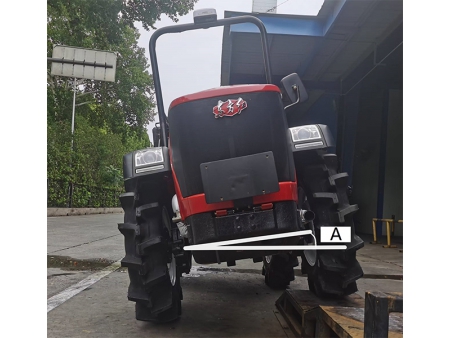

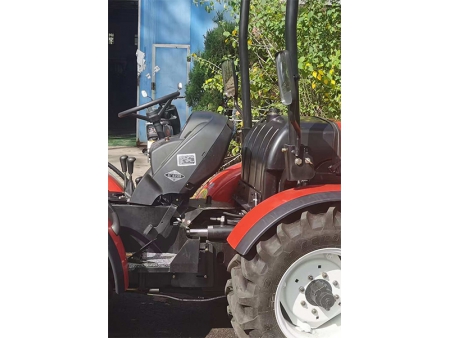

Narrow Tractor / Orchard Tractor, 50HP
Request a Quote
YTO-NSH5045M
Features
- A short wheelbase combined with a full hydraulic articulated steering system delivers a 2.5m turning radius, providing superior agility for work in mountainous, hilly, and other confined terrains.
- Standard 16F 8R creeper gearbox provides high torque at low speeds. An optional 8F/8R shuttle shift mode is available for greater operational flexibility across a wide range of tasks.
- An internally mounted air filter and muffler design ensures unobstructed front visibility.
- Wet disc brakes ensure smooth, consistent, and dependable braking performance.
- Features two hydraulic outlets compatible with a wide variety of farming equipment.
- Articulated steering
- Articulation angle: 15°
- Equal-sized front and rear wheels
- 2 hydraulic outlets
Specifications
| Model | |
| Engine type | 4 cylinder, naturally aspirated diesel engine |
| Rated engine HP (kW) | 36.4(50) |
| Engine speed (rpm) | 2400 |
| Clutch | Single action |
| Gears | 16F/8R (option: 8F/8R) |
| Speed range (km/h) | 0.69-29.44 |
| Brake | Wet, disc |
| Rear PTO (rpm) | 540/1000 |
| Lift capacity (pivot point) (KN) | ≥16.2 |
| Hydraulic outputs (set) | 1 or 2 |
| Dimensions (L*W*H) (mm) | 3378*1280*2020 (steering wheel) |
| Wheelbase (mm) | 1338 |
| Ground clearance (mm) | 250 |
| Min. turning radius (m) | 2.5 |
| Track width (F/R) (mm) | 1000-1200/1000-1200 |
| Tyre (F/R) | 260/70R20, 260/70R20 |
| Total mass (ROPS) (kg) | 2030 |
