Narrow Tractor / Orchard Tractor, 50-75HP
Request a Quote
YTO-NME5045F/ NME5545F/ NME6045F/ NME6546F/ NME7046F/ NME7546F
Features
- This tractor features an attractive design and compact body with a minimum overall width of ≤1.2m, making it ideal for orchards and other narrow or confined spaces.
- The standard 8F/8R shuttle shift, with an optional 16F/8R creeper gear configuration to meet a diverse range of operational needs.
- Hydrostatic power steering ensures light, responsive, and effortless handling.
- Equipped with an integrated front axle housing that provides superior strength and load-bearing capacity.
- Four-post cab offers wide visibility. For enhanced comfort, air conditioning and heating systems are optional..
- Optional air brake system and two hydraulic outputs.
- Can be equipped with an air-over-hydraulic (air) brake system and two units of hydraulic outlets.

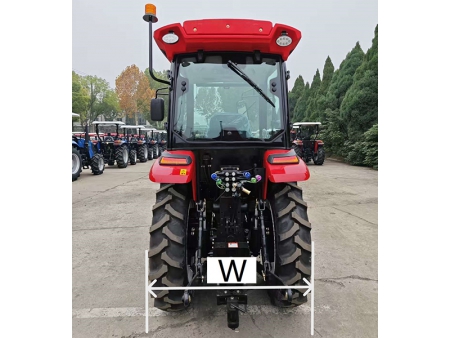

- Width: 1200mm
- External dry-type air filter
- 2 hydraulic outlets
Specifications
| Model | |||||||
| Engine type | 4 cylinder, naturally aspirated diesel engine | 4 cylinder, turbocharged diesel engine | |||||
| Rated engine HP (kW) | 36.8(50) | 40.5(55) | 44.1(60) | 47.8(65) | 51.5(70) | 55.2(75) | |
| Engine speed (rpm) | 2300 | 2200 | |||||
| Clutch | Double Action | ||||||
| Gears | 8F/8R (option: 16F/8R) | ||||||
| Speed range (km/h) | 2.34-30.71 | 2.25-29.37 | |||||
| Brake | Wet, disc | ||||||
| Rear PTO (rpm) | 540/1000 | ||||||
| Lift capacity (pivot point) (KN) | ≥15 | ||||||
| Hydraulic outputs (set) | 1 or 2 | ||||||
| Dimensions (L*W*H) (mm) | ROPS | 3700*1260*2200 | 3700*1285*2230 | 3700*1285*2275 | 3720*1285*2275 | 3720*1345*2280 | |
| Cab | 3700*1200*2400 | 3700*1285*2430 | 3700*1285*2475 | 3720*1285*2475 | 3720*1345*2480 | ||
| Wheelbase (mm) | 1810 | ||||||
| Ground clearance (mm) | 270 | 280 | 300 | ||||
| Min. turning radius (m) | 5.2±0.3 | ||||||
| Track width (F/R) (mm) | 900 / 900-1100 | 1000 / 1000-1100 | |||||
| Tyre (F/R) | 6.00-16 / 9.5-24 | 6.50-16/11.2-24 | 7.50-16/11.2-28 | ||||
| Total mass (ROPS/Cab) (kg) | 2120/2220 | 2170/2270 | 2220/2320 | 2320/2420 | |||
