Narrow Tractor / Orchard Tractor, 35-55HP
Request a Quote
YTO-NSK3543F/ NSK4043F/ NSK4543F/ NSK5043F/ NSK5543F
Features

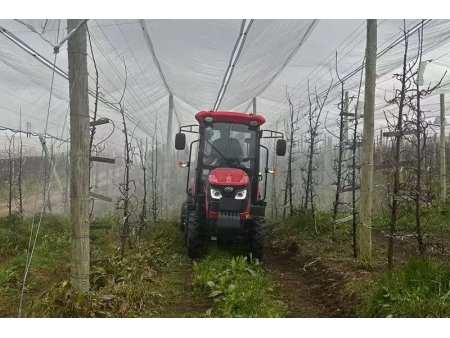

- With a minimum overall width of ≤1.1m, this tractor is purpose-built for navigating the tightest rows in orchards and other confined operational areas.
- Hydraulic power steering ensures light control and agile maneuvering.
- The side-mounted gear lever allows for intuitive and convenient operation.
- Integrated front axle housing provides durability for high load capacity.
- The four-post cab design offers an excellent view.
- Optional air brake system and two hydraulic outputs.

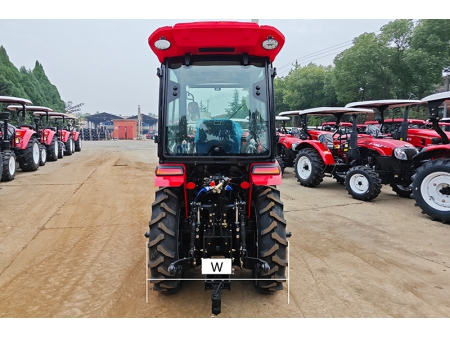

- Width: 1100mm
- Sliding rear axle with steplessly adjustment
- Under-mounted muffler
Specifications
| Model | ||||||
| Engine type | 4 cylinder, naturally aspirated diesel engine | |||||
| Rated engine HP (kW) | 25.8(35) | 29.4(40) | 33.1(45) | 36.8(50) | 40.5(55) | |
| Engine speed (rpm) | 2200 | 2400 | 2300 | |||
| Clutch | Double action | |||||
| Gears | 8F/2R (option: 8F/8R) | |||||
| Speed range (km/h) | 1.66-24.6 | 1.89-28 | ||||
| Brake | Dry, shoe | |||||
| Rear PTO (rpm) | 540/1000 | |||||
| Lift capacity (pivot point) (KN) | ≥12 | |||||
| Hydraulic outputs (set) | 1 or 2 | |||||
| Dimensions (L*W*H) (mm) | ROPS | 3700*1090*2350 | 3700*1090*2380 | 3700*1285*2420 | ||
| Cab | 3700*1090*2400 | 3700*1090*2430 | 3700*1285*2475 | |||
| Wheelbase (mm) | 1860 | |||||
| Ground clearance (mm) | 290 | 300 | 320 | |||
| Min. turning radius (m) | 5.5±0.3 | |||||
| Track width (F/R) (mm) | 900 / 900-1100 | 1000/1000-1100 | 1000/1000-1100 | |||
| Tyre (F/R) | 6.00-16 / 9.5-24 (option: 6.50-16/11.2-24) | 6.50-16/11.2-24 (option: 7.50-16/12.4-24) | 7.50-16/12.4-24 | |||
| Total mass (ROPS/Cab) (kg) | 1820/1970 | 1960/2110 | 2050/2200 | 2090/2250 | ||
