Automatic Facial Tissue Folding Machine, TF-1500-2050
Request a Quote
- This automatic folder is designed to automatically fold, stack and sort facial tissue and non-woven fabric;
- This facial tissue folding machine is equipped with multiple sets of servo drives and can improve first yield rate effectively by achieving precise counting and stacking;
- Size change and material loading can be achieved by adjusting parameters;
- This facial tissue automatic folder can be connected with pre-arrangement units and rotary tables to work in a stable and efficient way.

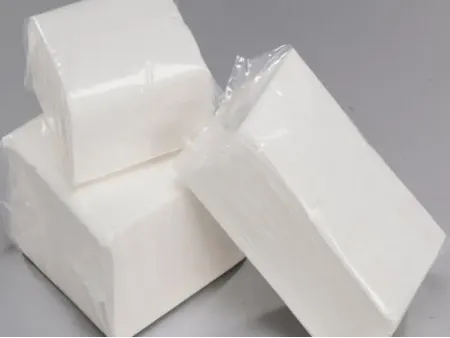

Wrapping Style

Details



Specifications
Application | facial tissue, V fold paper towel, V-fold napkin, non-woven fabric | |
Separator | Servo drive | |
Output | 100 meters/min | |
Packaging dimension | 1500-2050 mm | |
Available folding size (unfold) | 170/175/180/190 | Contact us to customize more sizes |
Unwinder | 2 sets | Contact us to install more sets |
Embossing system | Ordinary edge embossing roll, four edge embossing roll, steels/ rubber/ woolen embossing roll | |
Air compressor | Prepared by user | |
Jumbo roll ply | 2/3/4/5 | |
Control system | 6-axis servo positioning controller | |
Optional functions | Ultrasonic spray humidification unit, jumbo roll accumulator, exhaustion device, rotary device | |
Counting mode | Activated through touch screen |
