Foam Cutter (Horizontal Blade CNC Foam Slicing Machine, Model GHH8)

Foam Cutter (Horizontal Blade CNC Foam Slicing Machine, Model GHH8)
Foam Cutter (Horizontal Blade CNC Foam Slicing Machine, Model GHH8)
Foam Cutter (Horizontal Blade CNC Foam Slicing Machine, Model GHH8)
Request a Quote

GHH8 horizontal blade CNC foam slicing machine is capable of fast and efficient slicing, producing neat products that can be directly used in the next step without the need for manual stacking and organizing. With high cutting efficiency, it can reach a maximum speed of 100 m/min, significantly reducing labor costs in production.

Applications
This horizontal blade CNC foam slicing machine is ideal for dust-free cutting of any desired geometric contours in industries such as automotive, furniture, packaging, construction, and daily necessities industries, etc.

Cuttable Materials
Polyurethane foam, HR CMHR, flexible PU foam, self-adhesive foam, Basotect® foam, composite foam, molded foam, polyethylene foam.

Technical Parameters
  Standard Option
Foam block length 3000mm 4500mm/5000mm
Foam block height 1250mm 1500mm
Foam block width 2200mm 2300mm
Worktable Worktable with belt conveyor
AC power 380V 3 phase 4 wire
Total power 25KW
Max. feeding speed 40m/min
Cutting accuracy ±0.5mm
Cutting tool Air pressure: 6 bar
Continuous blade
Blade size: 10850mm×13mm×0.65mm (double-edge blade)
Line speed: 15m/s
Standard configuration Remote diagnosis and maintenance
Automatic programming software
Absolute value control
Automatic angle adjustment
Automatic loading monitoring
Automatic press device
Vacuum suction system (for foam holding)
Optional configuration Automatic sharpening system
Loading conveyor L3300mm
Unloading conveyor L3300mm
Max. cutting speed 100m/min

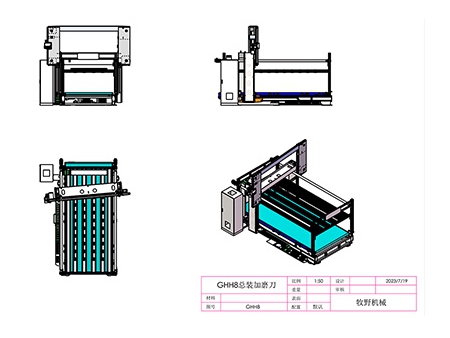

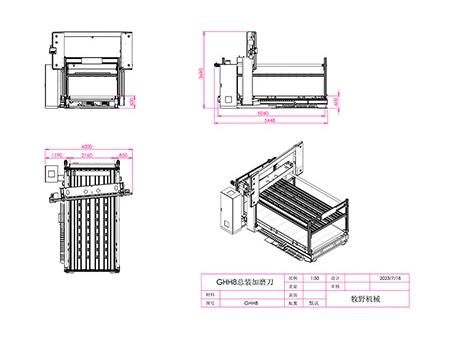

Installation instruction
