Usage
The horizontal foam cutter can cleanly cut nearly any desired geometric profile, which can then be used in a number of industries.

Materials suitable for cutting
Polyurethane, HR CMHR, PU flexible foam, sticky foam, latex, Basotect, rebond foam, frame foam, polyethylene.

Shapes
This particular machine is ideal for cutting blocks, 2D and 3D products, and wavy, curved, regular and irregular shapes.

Technical Parameters of the Foam Cutter
  Standard Option
Length of the foam block 3000mm 4500mm/5000mm
Height of the foam block 1250mm 1500mm
Width of the foam block 2200mm 2300mm
Work table Conveyor belt worktable
AC power 380V 3 phase 4 wire
Total power 30kW
Max. feeding speed 40m/min
Cutting precision ±1mm
Cutting tool Air pressure: 6 bar
Continuous blade
Blade size: 13090mm×3.2mm×0.6mm
Line speed: 15m/s
Standard configuration Remote diagnosis and maintenance
Automatic programming software
Absolute value control
Automatic angle adjustment
Manual angle adjustment
Automatic loading monitoring
Automatic press device
Vacuum suction system (for foam holding)
Optional configuration Automatic sharpening system
Loading conveyor L3300mm
Unloading conveyor L3300mm
Max cutting speed Different cutting materials will be cut at different speed. And the max. speed is 30 meters/minute.
Details of Horizontal CNC Contour Cutting Machine, Model GHL4

Based on the original GH1 horizontal foam cutting machine, the GHL8 foam cutter jumps ahead of its time. Users who need to cut large quantities of foam into irregular shapes will find this machine ideal. As production requires, the contour cutting line can cut foam placed on the worktable either as a whole or in small steps, and this CNC foam cutter has an automatic continuous operation.

Features
1. This machine covers a small floor area (only 5% of that taken up by a similar machine)
2. It has low power consumption.
3. The cutting machine also has a high cutting efficiency. (The contour cutting line uses an endless knife rather than an oscillating knife, making the cutting speed 2 or 3 times faster than the original speed.)

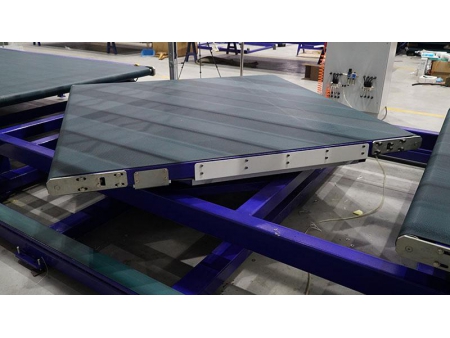

4. This CNC contour cutting line features a high cutting precision, utilizing a unique design on its rotary platform with a pressure rack.
5. It is convenient for packaging, as processing and packaging can occur simultaneously.
6. The GHL4 machine uses as much foam as possible in an effort to reduce waste.
7. It significantly reduces manual labor and production costs.

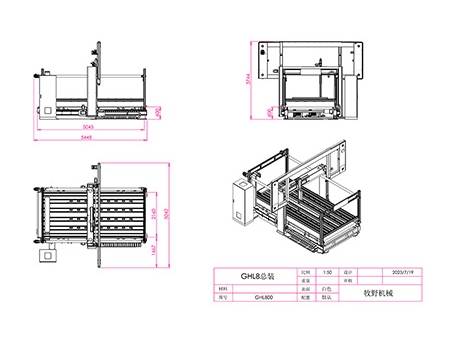

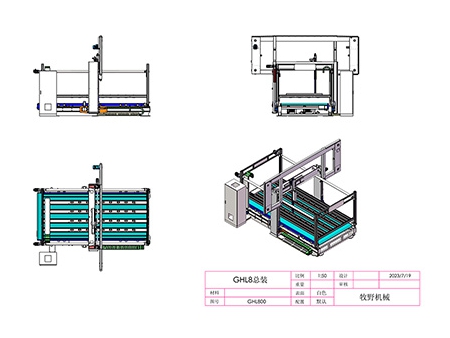

Installation Drawing
