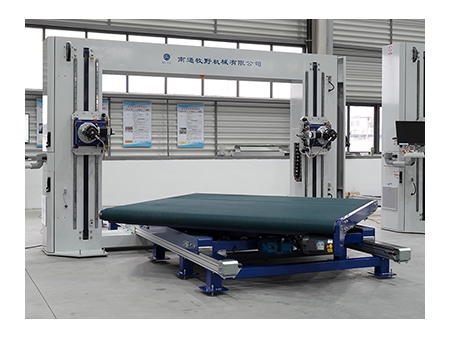

H7S foam cutter is a high-precision horizontal contour cutting machine with high automation capabilities, capable of meeting the basic cutting requirements. Its automatic worktable can rotate 90 degrees.

Applications
This horizontal blade CNC contour cutter is ideal for dust-free cutting of any desired geometric contours in industries such as automotive, furniture, packaging, construction, and daily necessities industries, etc.

Cuttable Materials
Polyurethane, HR CMHR, flexible PU foam, self-adhesive foam, Basotect® foam, rebond foam, polyethylene foam.

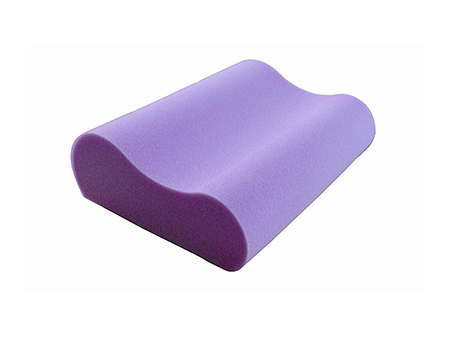

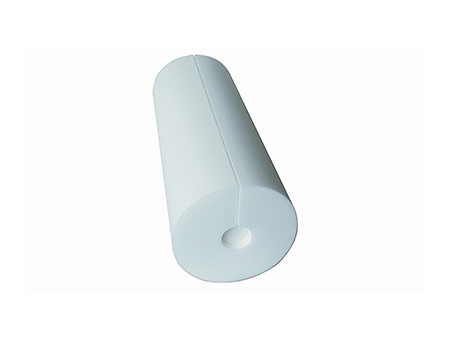

Cuttable Shapes
This horizontal blade CNC contour cutter is suitable for cutting block-shaped products. The unique rotating worktable allows the cutting of pyramid shapes, wave lines, curved regular and irregular shapes, as well as two-dimensional and simple three-dimensional geometric profiles.

Technical Parameters
  Standard Option
Max Length of foam block 2200mm 2300mm
Max Height of foam block 1250mm 1500mm
Max Width of foam block 2200mm 2300mm
Worktable Automatic turntable (90°) with conveyor
AC Power 380V 3 phase 4 wire
Total Power 13KW
Cutting precision ±0.5mm
Cutting tool Air pressure: 6 bar
Blade stroke: 48mm 50Hz
Blade size: 2420mm×3.0mm×0.6mm
Oscillating speed: 3000 times/min
Standard configuration Modem (remote diagnosis and maintenance)
Automatic turntable
Automatic programming software
Automatic angle adjustment
Absolute value control
Hanging control panel
Max. cutting speed Different cutting materials will be cut at different speed. And the max. speed is 15 meters/minute.

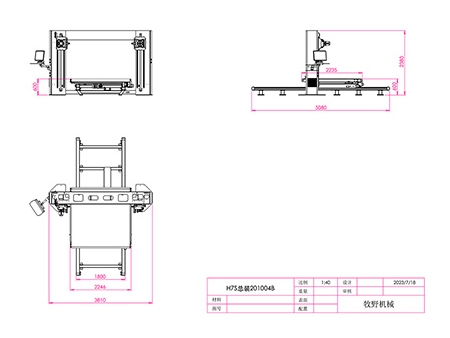

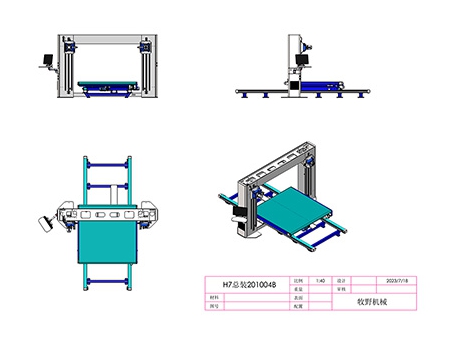

Installation instruction
