GV6-GHH8 CNC foam cutting line is primarily designed for cutting sheet-shaped regular or irregular sofa foam cushions. The entire foam board can not only be cut into one version but also be automatically absorbed and separated to achieve multi-version cutting. This foam cutter is suitable for both single batch of large-quantity and multi batches of small-quantity applications, making it ideal for the sofa industry with an increasing trend of more batches and fewer quantities.

The irregularly shaped sofa foam cushions, as shown in the figure, have a volume of 500x2000x3000 for each batch with a thickness of 30mm for each foam block. The cutting cycle time for each batch is approximately 3-4 minutes, and the turnaround time is around 0.5 minutes. With an 8-hour workday, approximately 100 batches can be produced, resulting in a production capacity of 300 cubic meters of foam blocks per day.

The irregularly shaped sofa foam cushions, as shown in the figure, have a volume of 500x2000x3000 for each batch with a thickness of 30mm for each foam block. The cutting cycle time for each batch is approximately 3-4 minutes, and the turnaround time is around 0.5 minutes. With an 8-hour workday, approximately 100 batches can be produced, resulting in a production capacity of 300 cubic meters of foam blocks per day.

5 workers are required for this task. Additionally, an automatic nesting software is provided, which can generate a nesting diagram in less than 1 minute on average.

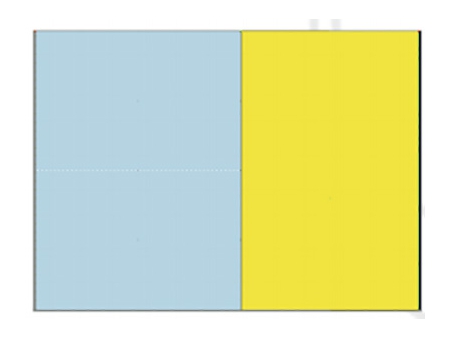

The regular-shaped sofa foam cushions, as shown in the figure, have a volume of 1000x2000x3000 for each batch with a thickness of 50mm for each foam block. The cutting cycle time for each batch is approximately 3-4 minutes, and the turnaround time for each batch is around 0.5 minutes. With an 8-hour workday, approximately 100 batches can be produced, resulting in a production capacity of 600 cubic meters of foam blocks per day.

6 workers are required for this task.


Technical Parameters
  Standard Option
Length of the foam block 3000mm 4500mm/5000mm
Height of the foam block 1250mm 1500mm
Width of the foam block 2200mm 2300mm
Work table Conveyor belt worktable
AC power 380V 3 phase 4 wire
Total power 25KW
Max. feeding speed 40m/min
Cutting precision ±0.5mm
Cutting tool Air pressure: 6 bar
Continuous blade
Blade size: 10850mm×13mm×0.65mm (double-edge blade)
Blade size (GV6): 10350mm×3.5mm×0.6mm
Line speed: 15m/s
Standard configuration Worktable with loading conveyor L3300mm
Standard GHH8
Lifting worktable with transfer conveyor L3300mm
Standard GV6
Lifting worktable with unloading conveyor L3300mm
Safety guard
In-line control system
Optional configuration Automatic guide worktable
Max. cutting speed 100m/min (GHH8) 60m/min (GV6, depending on material being cut)

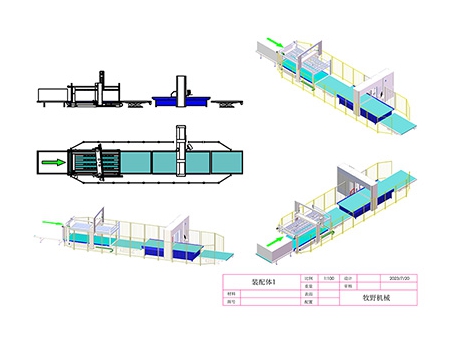

Installation instruction
