Urine Tube Assembly Line

Request a Quote

View All: http://medical-machinery.com/1-10-urine-container-assembly-line.html

5,000 pcs/h

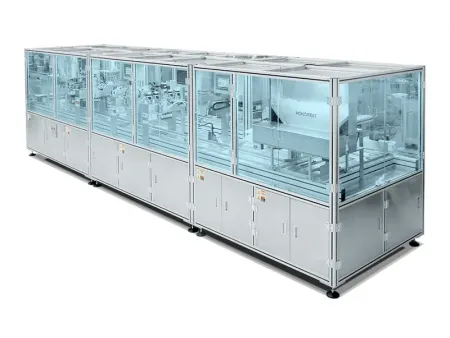

Automatic assembly machine for urine collection tubes

Production capacity 5,000 pcs/h
Tube Size 16×100mm, can be customized as per clients samples
Reagent filling range Customizable based on client specifications

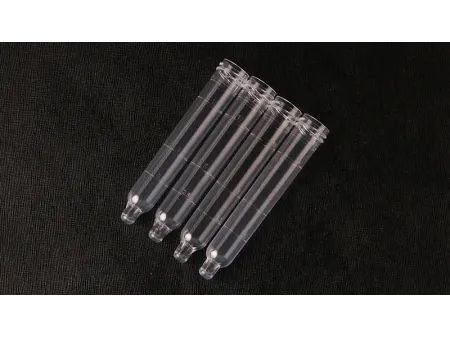

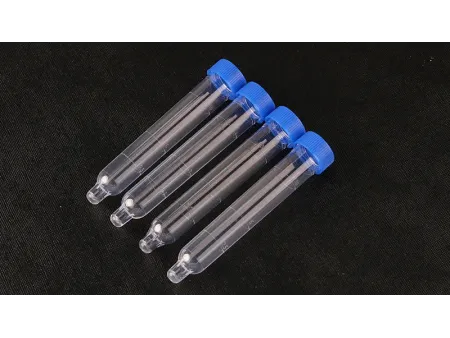

Finished Product Samples

Urine tube production demands precision and consistency, particularly when it comes to automated processes. Designed to enhance efficiency, this assembly line incorporates steps such as labeling, automated loading, powder reagent filling, and cap sealing, all supported by a vibration feeding mechanism to ensure continuous, uninterrupted operation.

Features

Corporate a newly developed, highly accurate powder filling system.
Automated systems ensure smooth feeding of tubes and caps.
Suitable for various reagent types:

Blood collection tubes: Fluoride, Potassium Oxalate.

Urine tubes: Boric Acid, Chlorhexidine, Sodium Propionate, Sodium Formate, Anhydrous Sodium Tetraborate, etc.

Technical Specifications

Capacity: 5,000 pcs/h
Tube Size: 16×100mm
Reagent filling range: Customizable based on client specifications.
Filling precision: ±20%
Power consumption: 5kW/380V
Overall dimensions (LxWxH): 2250mm × 1450mm × 1650mm
