Automatic Vacuum Blood Collection Tube Assembly Line

Request a Quote

Website: http://medical-machinery.com/1-1-4-automatic-vacuum-blood-collection-tube-assembly-line.html

15,000-18,000 pcs/h (with Pre-Labeling)

Automatic production line for assembling vacuum & non-vacuum blood collection tubes

Production capacity 15,000-18,000 pcs/h
Tube size Ø13×75mm, Ø13×100mm, Ø16×100mm, customizable
(available in PET, PP, glass)
Cap size As per client’s samples

Finished product out

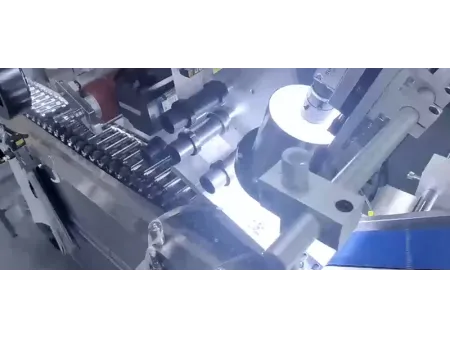

CCD camera detection for labeling during blood collection tube production
Automatic tube loading into jigs
Reagent drying for blood collection tube

Finished Product Samples

With a production speed of up to 18,000 tubes per hour, this blood collection tube assembly line offers the efficiency and precision needed for high-volume medical supplies manufacturing. The equipment smoothly transitions between vacuum and non-vacuum tube production by adjusting the vacuum settings to zero. Equipped with a pre-labeling system, it ensures accurate labeling for tubes sized 13×75mm, 13×100mm, and 16×100mm, and is compatible with PET, PP, and glass tubes.

Work Flow

Labeling (tubes without labels are automatically rejected)

Tube loading

Inversion detection

Additive dosing (K2 EDTA/K3 EDTA, heparin, clot activator, sodium citrate)

Capping

Vacuuming

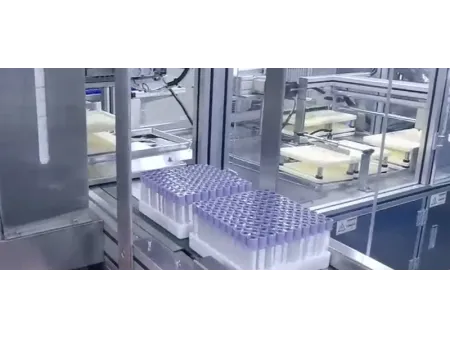

Foam tray loading

Heat shrink packaging

Completion

Technical Specifications

Model	H100 Pre-Labeling
Production capacity	15,000-18,000 pcs/h
Tube size	Ø13×75mm, Ø13×100mm, Ø16×100mm, customizable (available in PET, PP, glass)
Cap size	As per client’s samples
Control system	PLC control with touch screen
Additive dosing system	K2/K3 EDTA: 10 sets of precision ceramic pump
	Blood clot activator (BCA): 10 sets of precision ceramic pump
	Sodium citrate: 5 sets of precision ceramic pump
Additive drying system	4 PTC dust-free drying machines
Detection system	Rejection of unlabeled tubes
	Inverted tube detection before additive dosing
	Alarm for shortage of foam trays
Vacuum degree	Equipped with Leybold vacuum pump (Germany) and SMC vacuum control system (Japan)
Air consumption	Max. 1 m³/min Air supply pressure P:0.7Mpa≤P≤1Mpa
Power	25kW/AC380V
