Automatic Edge Gluing Press
Request a Quote
//Woodworking Machinery
Wood panel gluing machine for the production of solid wood panels
Woodworking Machinery

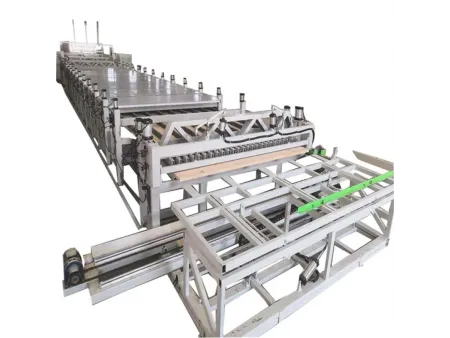

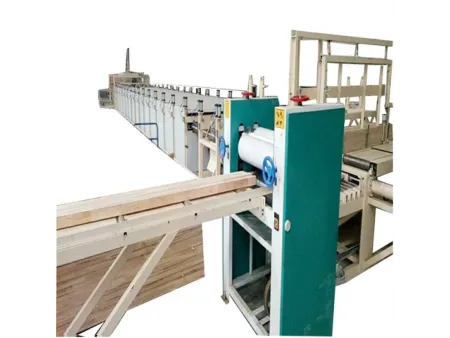

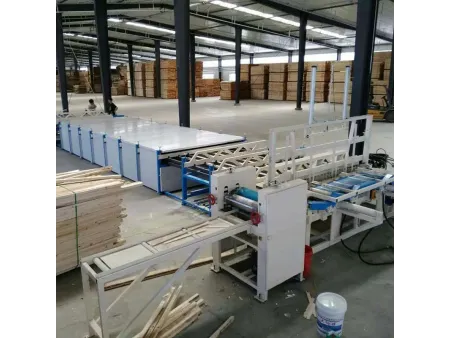

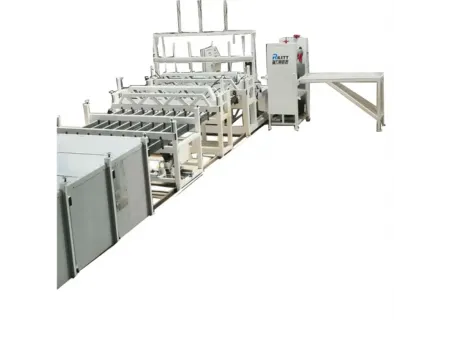

Automatic edge gluing presses efficiently produce solid wood panels through a fully automated process that integrates gluing, pressing, edge trimming, drying, cutting, lifting, and stacking. Requiring only one operator to load workpieces at the entry point, these systems handle all subsequent steps automatically. This setup significantly boosts production efficiency, reduces labor costs, and ensures consistent panel quality.
Specifications
- Machine length approx. 21m
- Machine width machine head conveyor line 3m 3m, machine body 3m, machine tail conveyor line 3m 3m
- Working length 2m-2.6m (adjustable, please notify us in advance if special specifications are needed)
- Working width adjustable within 1.6m
- Working thickness 12-40mm
- Power approx. 15kW
