Linear Edge Milling Machine Manufacturer

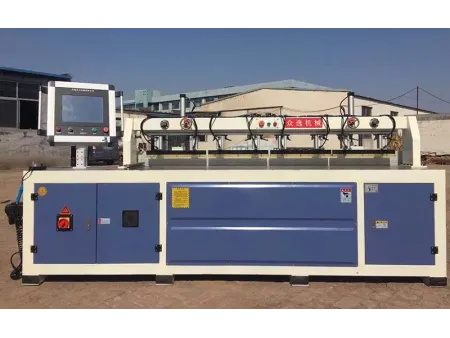

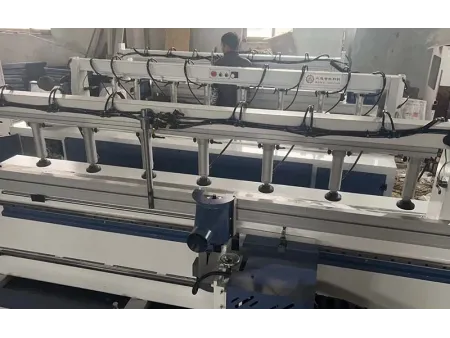

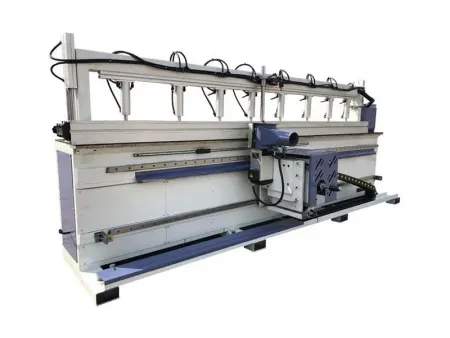

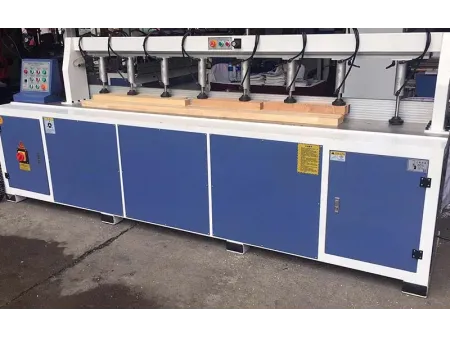

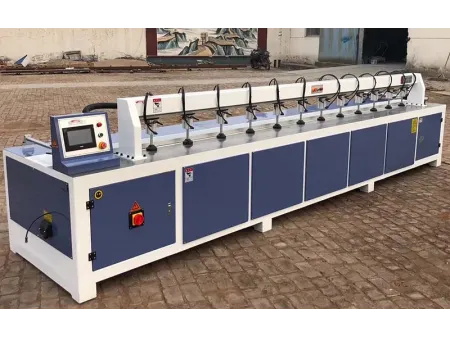

Linear Edge Milling Machine

Request a Quote

View All: http://woodmachines-en.com/1-5-6-linear-edge-milling-machine.html

//Woodworking Machinery

Wood processing machine for milling and deburring the edge of wood board

Woodworking Machinery

Max. working length120-2500mm
Spindle speed1200r/min
Machine dimensions (L×W×H)3300×1200×1400mm
Machine weight1100kg

Linear edge milling machines handle precise edge processing of wood panels and boards, trimming, shaping, and deburring rough or uneven edges left from cutting. They ensure a smooth, flat, and clean finish, with fine control over edge dimensions and contouring to improve uniformity and fit. Particularly effective for preparing edges for bonding, panel joining, or finishing, these machines contribute to higher product quality and assembly precision.

Specifications

Max. working length120-2500mm
Shaft diameterØ35mm
Spindle speed1200r/min
Dust suction inlet diameterØ100mm
Machine dimensions (L×W×H)3300×1200×1400mm
Milling motor power5.5kW
Machine weight1100kg

Advantages

Delivers high precision for tight, seamless board joints.
High-speed operation with a simple and user-friendly interface.

Applications

Used for trimming, shaping, and cleaning the edges of wood boards and timbers. Commonly applied in board splicing and edge preparation before assembly or surface finishing.
