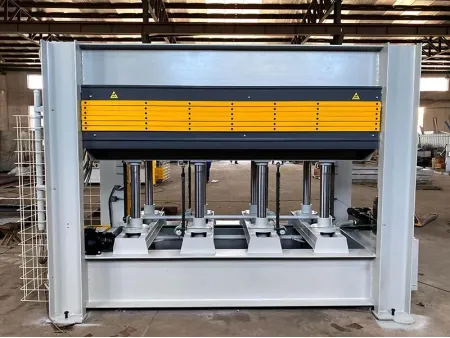

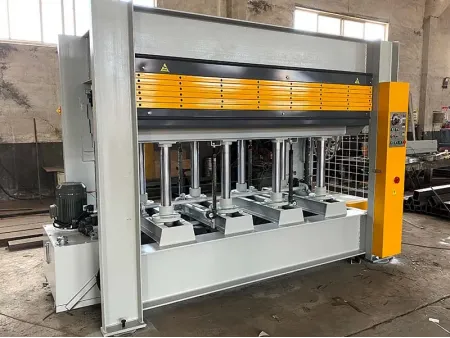

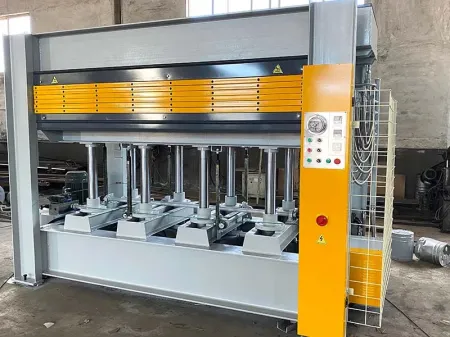

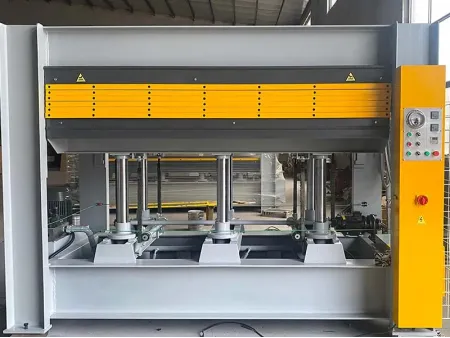

Hot Press

Request a Quote

View All: http://woodmachines-en.com/1-11-5-2-hot-press.html

//Woodworking Machinery

Wood pressing machine for bonding furniture panels, veneering or pasting decorative materials on wood panels through heat and pressure

Woodworking Machinery

Cylinder diameter100mm
Cylinder stroke500mm
Machine dimensions (L×W×H)4600×1670×2240mm
Machine weight11000kg

Woodworking hot presses are widely used in wood panel bonding and surface veneering processes in furniture manufacturing. By applying high temperature and uniform pressure, it ensures strong adhesion between decorative materials (such as veneer, melamine paper, or laminates) and the wood substrate. It is ideal for the production of furniture panels, door skins, and surface-finished boards, delivering smooth, durable, and aesthetically refined results.

Specifications

Model	H5
Platen Size (L×W×H)	3200×1400×4200mm
Cylinder diameter	100mm
Cylinder stroke	500mm
Cylinder quantity	6pcs
Hydraulic pump motor	5.5kW
Rated voltage	380V
Frequency	50HZ
Max. working temperature	100℃
Heating power	User’s heating system
Max. working pressure	300T
Machine dimensions (L×W×H)	4600×1670×2240mm
Machine weight	11000kg
