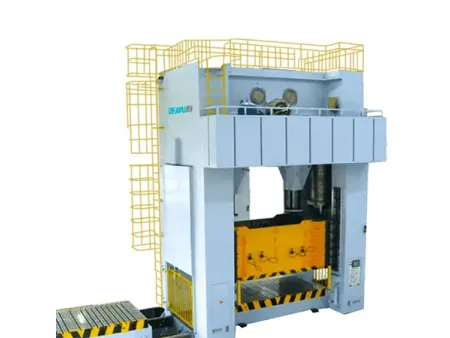

DT2 Deep Drawing Presses

Mechanical H-frame press for forming battery shells and other deep drawn parts
  • Capacity 300T to 400T
  • Stroke length 350mm to 400mm

The straight side two point deep drawing press is a high-precision mechanical H-frame press engineered for forming battery shells and other deep drawn components. Built to exceed Japan’s JIS grade-1 precision standards, this machine is ideal for large-scale deep drawing operations that demand accuracy, rigidity, and efficiency.

With a capacity from 300T to 400T and stroke lengths ranging from 350mm to 400mm, the deep drawing press supports long-form, high-precision part production. Its welded one-piece frame is stress-relieved through tempering, ensuring excellent rigidity and dimensional stability. Customers are welcome to witness the tempering process onsite during production.

Equipped with eight-sided guideways, the press enhances off-center load resistance. Cross gearboxes are integrated on the press sides, while guide pillars and bushings with circulating thin oil lubrication are installed on both upper and lower worktables. A base-mounted oil tray keeps the workspace clean.

All gears follow high-precision grinding procedures consistent with top Japanese standards, delivering smooth transmission and low noise. The connecting rods, bushings, and guideways are lubricated through an automatic circulating system to ensure long-term high-speed operation. A high-torque clutch and brake system ensures safe, responsive control.

Applications

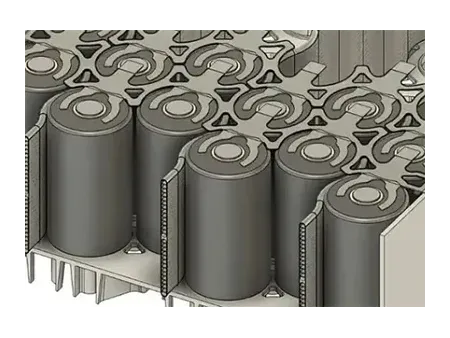

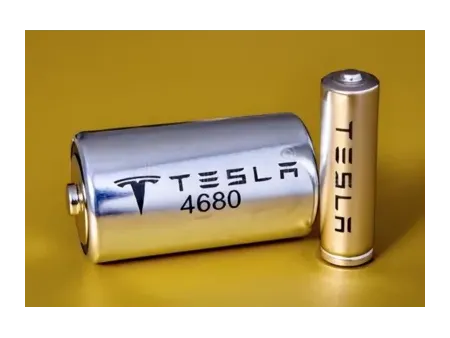

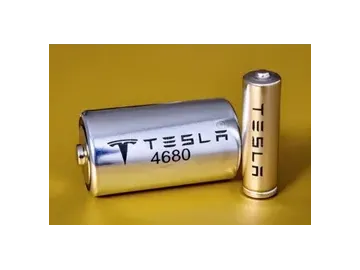

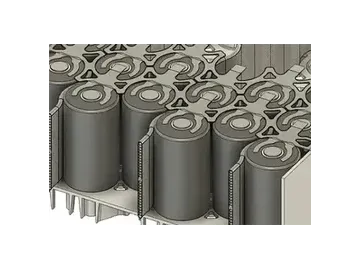

  • Power battery shells: 4680, 4695
  • Energy storage battery shells: 46114, 46140
  • Other long deep drawn parts
Specifications
Model Unit DG2-60E DG2-80E DG2-110E DG2-160E
Capacity T 60 80 110 160
Rated tonnage point mm 3.0 3.5 5 6
Stroke length mm 140 180 190 240
Max. die height mm 260 320 320 380
Slide strokes per minute S.P.M 50-100 60-80 30-50 25-45
Slide area mm 1460×480×70 1460×480×70 1760×500×70 2040×600×70
Bolster area mm 1500×480×130 1500×480×130 1800×600×130 2100×760×150
Max. upper-die weight kg 300 300 700 800
Download

Our product brochure

The straight side two point deep drawing press provides the strength, accuracy, and stability required for battery shell manufacturing and deep drawing production. Contact us to learn how this press can meet your specific application needs.
