Material: PET or Nylon multifilament
Working temperature: -60℃-125℃
Melting temperature: 230℃±10℃
Fireproofing grade: UL VW-1
Expansion range: 1 time
Product certification: RoHs

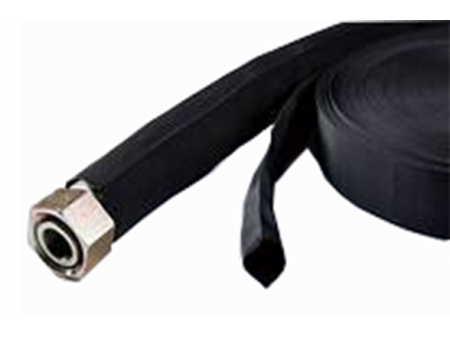

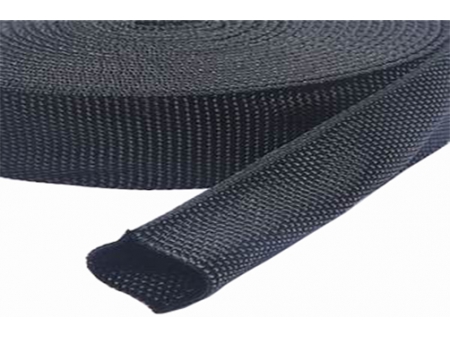

Textile protective sleeve consists of Nylon or PET multifilament. It features a high tensile resistance, and is non-toxic, explosion resistant, and wear resistant. It also carries out noise reduction, moisture absorption and dust prevention.

Application

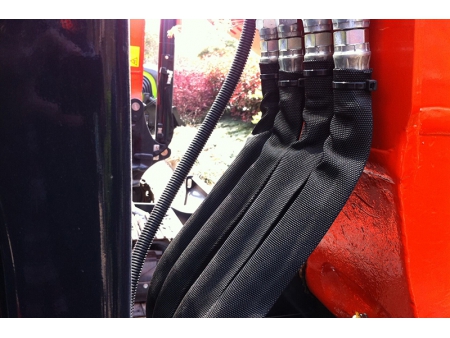

The textile sleeve is usually used to protect hydraulic pipes, rubber hoses and wire harnesses in heavy machinery.

Optional specification
Model Flat width(W) Inner diameter Wall thickness Package(L)
NC-030 30 18 1.0 50m/reel
NC-040 40 24 1.0 50m/reel
NC-045 45 28 1.0 50m/reel
NC-050 50 31 1.0 50m/reel
NC-060 60 37 1.0 50m/reel
NC-070 70 44 1.0 50m/reel
NC-080 80 50 1.0 50m/reel
NC-090 90 56 1.0 50m/reel
NC-100 100 62 1.0 50m/reel
NC-145 145 93 1.0 50m/reel
NC-175 175 112 1.0 50m/reel

Note: Please call or email us for other specifications.
