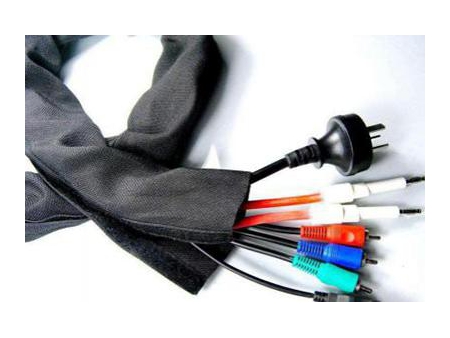

PET Side Entry Braided Sleeving (Hook and Loop Sleeve)
Material: PET(polyester fiber of 1.0 viscosity)
Working temperature: -50℃-150℃
Melting temperature: 240℃±10℃
Fireproofing grade: UL VW-1
Tensile force of 0.25mm filament: ≥609 (MPa)
Optional filament diameter: 0.20mm, 0.22mm, 0.25mm, 0.38mm
The PET side entry braided sleeving (hook and loop sleeve) uses industrial and environmentally friendly PET filament of high strength to give it the open structure, then the sleeving is sutured with hook and loop fasteners (or zippers) to complete various processes. It is first braided into an open end using a wire braiding machine, then sutured with the fasteners into sleeving. This sleeving is primarily used to bundle items in various shapes and sizes. It can be installed and disassembled quickly and easily, and features an excellent elasticity, fire resistance, wear resistance and heat insulation property. The appearance is smooth, brilliant and colorful.
Application
The PET side entry braided sleeving (hook and loop sleeve) is mainly used in the wire straightening and protection of A/V wires, indoor heater power cord, computer or TV external connection line and other industries.
| Model | Nominal Size | Application | Filaments | Strands | ||
| mm | inch | |||||
| VBT-085 | 85 | 3 1/3 | 20-25 | 4 | 105 | |
| VBT-100 | 100 | 4 | 28-32 | 5 | 105 | |
| VBT-120 | 120 | 4 3/4 | 35-38 | 4 | 137 | |
Note: Please call or email us for other specifications.
