PET Textile Sleeving

Request a Quote

Website: http://sleeving-product.com/pet-textile-sleeving-4-5.html

TS2561

• Color: Black
• Operating Temperature: −50°C to 150°C
• Abrasion Resistance: Grade 6, >60,000 cycles (ISO 6722:2013)
• Low-Temperature Performance: Tested at −70°C for 24 hours (no cracking)
• Cutting Method: Hot cutting

Now

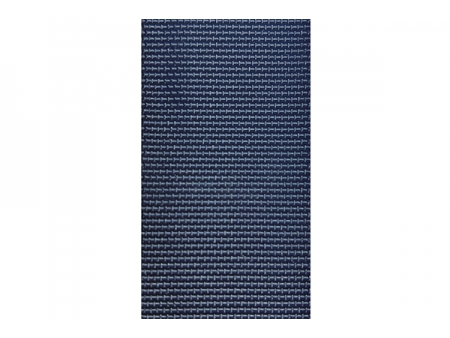

TS2561 series is a durable textile sleeving woven from high-quality polyester multifilament yarns. It provides reliable abrasion resistance, noise reduction, and corrosion resistance for the protection of hoses, cables, and wires in demanding applications.

Applications

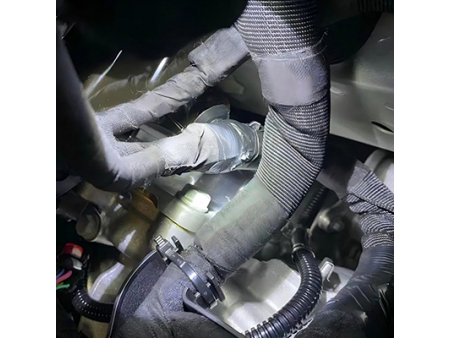

This sleeving is suitable for abrasion protection of fluid lines, industrial machinery, automotive systems, and electrical cables and harnesses.

Certifications

Parameters

Model	Diameter (mm)	Width (mm)	Thickness (mm)	Packaging Length (m/reel)
TS25611001	10	20±2	0.8±0.15	50
TS25611301	13	25±2	0.8±0.15	50
TS25611601	16	30±2	0.8±0.15	50
TS25611901	19	35±2	0.8±0.15	50
TS25612301	23	40±2	0.8±0.15	50
TS25612501	25	45±2	0.8±0.15	50
TS25612901	29	50±2	0.8±0.15	50
TS25613201	32	55±2	0.8±0.15	50
TS25613801	38	65±3	0.8±0.15	50
TS25614201	42	70±3	0.8±0.15	50
TS25614501	45	75±3	0.8±0.15	50
TS25614801	48	80±3	0.8±0.15	50
TS25615501	55	90±3	0.8±0.15	50
TS25616101	61	100±3	0.8±0.15	50
TS25617201	72	118±3	0.8±0.15	50

Available in custom cut lengths.
Custom sizes available upon request.

For detailed information, please download the product datasheet.
