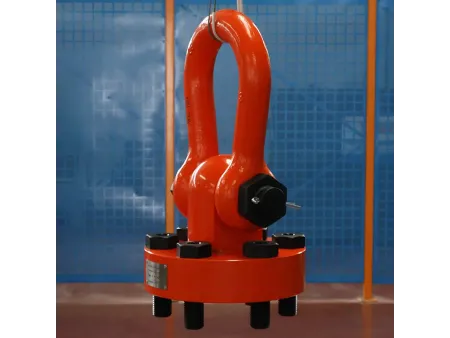

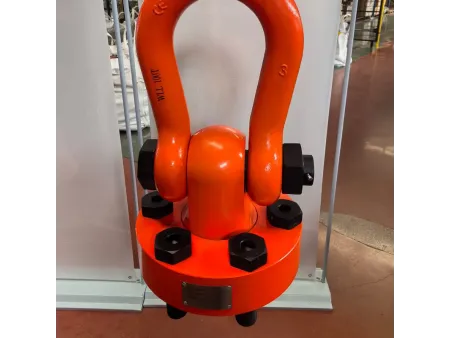

Heavy Duty Flange Lifting Point

Request a Quote

Website: http://loadlifting-en.com/1-13-heavy-duty-flange-lifting-point.html

BLT098 Rigging Hardware

Working Load Limit 85-250t

Rotation 360 degree

Pivot 180 degree

Material: High-strength chromium-molybdenum alloy steel
Attachment type: Screw-in
Rotation angle: 360°
Pivot angle: 180°
Surface treatment (rings): Powder-coated
Surface treatment (bolts): Black oxide finish
Working temperature range: -40℃~ 200℃
Thread size: M48
Bolt grade: 10.9
Custom thread: Metric/Unified National Coarse (UNC)/Unified National Fine (UNF)/pipe thread/lengthened/shortened
Rotates under load: No
Holding spring for suspension link: No
Working load limit: 85T-250T
Safety factor: 4:1
Standard: DIN EN 1677-1
Explosion protection: No
RAL color no.: Customizable
Identification label available: No

Inspection and Standards

Passed 6g plug gauge inspection, suitable for precision threaded holes
Underwent 1.5x load fatigue testing (20,000 cycles) and 2.5x rated load testing for strength and durability
100% magnetic particle inspection ensures the product is crack-free
Compliant with EN1677-1 manufacturing standards; certified test reports available upon request

Engineered for lifting and transporting heavy-duty equipment and workpieces, the heavy duty flange lifting point supports an impressive working load limit of 85–250t. With 360° rotation and 180° pivot capabilities, it ensures secure and precise handling in demanding industrial environments.

Key Features

Designed for lifting and transporting heavy-duty equipment and workpieces
Supports 360° rotation and 180° pivot for secure and versatile handling
Features an external hexagon bolt design for easy and efficient installation
Available in M48 thread size with a working load limit of 85–250t, tested at the most disadvantageous angle (90°)
Built with high-strength chromium-molybdenum alloy steel, quenched and tempered for enhanced durability and toughness
Coated with epoxy resin electrostatic powder (ring) and black oxide treatment (bolt) for corrosion resistance and extended service life
Each load-bearing component is stamped with a production batch number for easy traceability
Designed with a 4:1 safety factor and tested with 100% non-destructive inspection

Specifications

Item No.	Working Load Limit (t)	Thread M	Dimensions (mm)										Torque (Nm)	Weight (kg)
Item No.	Working Load Limit (t)	Thread M	A	B	C	D	E	F	G	H	K	N	Torque (Nm)	Weight (kg)
BLT098-85T	85	6-M48×5.0	398	75	600.0	190	100	326.0	274.0	310	71	82	350-800	200
BLT098-100T	100	6-M48×5.0	398	75	600.0	190	100	326.0	274.0	310	71	82	350-800	200
BLT098-120T	120	6-M48×5.0	570	89	688.5	234	120	391.5	297.0	445	75	95	350-800	414
BLT098-150T	150	10-M42×4.5	570	102	729.0	275	120	417.0	312.0	420	63	108	350-800	487
BLT098-200T	200	10-M48×5.0	650	120	891.0	290	130	474.0	417.0	500	71	130	350-800	729
BLT098-250T	250	10-M48×5.0	730	140	1053.0	305	150	567.5	485.5	580	72	150	350-800	1031

* Safety factor of 4:1;
* The length and thread of bolts can be made according to requirements;
