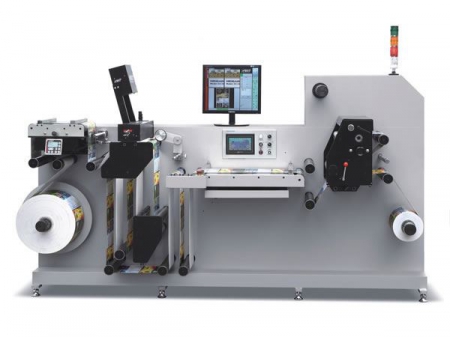

Automatic Label Inspecting Machine, ZB-320
Request a Quote

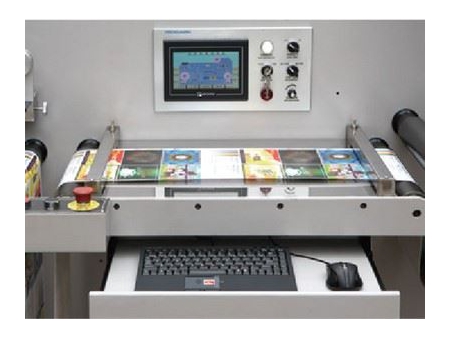

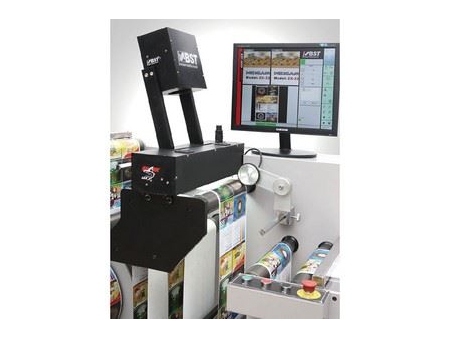

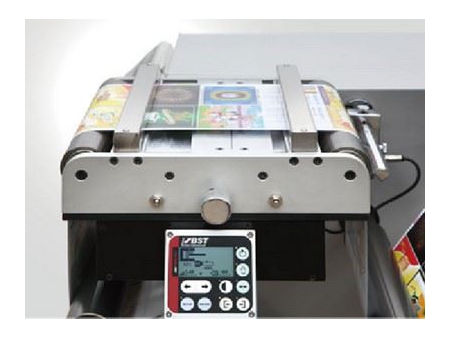

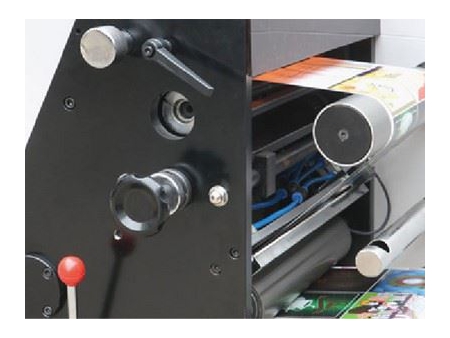

This automatic label inspecting machine utilizes advanced visual defect detection system from Germany BST company. This defective label inspecting equipment is capable of distinguishing the imperfect labels rapidly, such as skip printing, color difference, overprinting, scratch, etc. The automatic label detector is distinguished by fast testing speed and high accuracy. A slitting station is integrated with the label inspection machine for label cutting.
Specification
| Max. inspecting speed | 160m/min |
| Max. web width | 320mm |
| Max. unwinder diameter | 650mm |
| Max. rewinder diameter | 650mm |
| Slitting width | 20mm-300mm |
| Total power | 5kW |
| Power supply | 380V, 3-phase |
| Weight | 1450kg |
| Dimension: | 2850×1000×1500mm |
