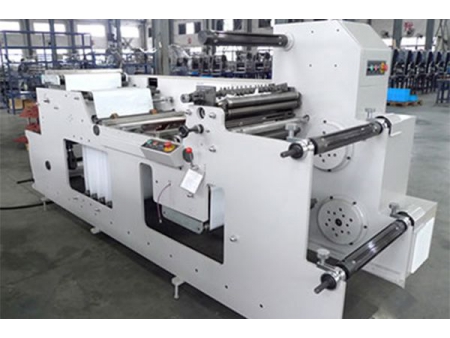

Auto Label Inspection Machine, ZB-520
Request a Quote
- Max. inspecting speed 160m/min
- Max. web width 520mm
- Slitting width 20mm-300mm
- Total power 5kw
Features
Our ZB-520 auto label inspection machine is equipped with latest BST (Germany) inspecting system and inline slitting unit. It is able to detect the defective labels, such as missing label, labels with color difference, bad registration and scratches. With the characteristics of high speed, high accuracy and ease of operation, the auto label inspection machine can highly improve the quality and output of finished labels.
Technical Specifications
| Max. inspecting speed | 160m/min. |
| Max. web width | 520mm |
| Max. unwinding and rewinding diameter | 650mm |
| Slitting width | 20mm-300mm |
| Total power | 5kw |
| Power supply | 380V/3P, 50Hz |
| Machine weight | 1850kg |
| Dimension | 2.85m×1.5m×1.5m |
