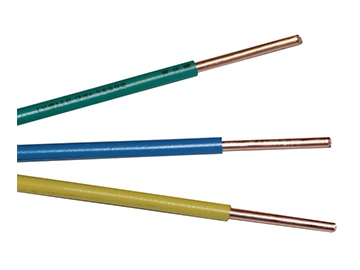

CU/PVC 450/750V PVC insulated non-sheathed cable
Request a Quote
UTP 4 Pairs cable-category 5E-100MHz PVC Sheath

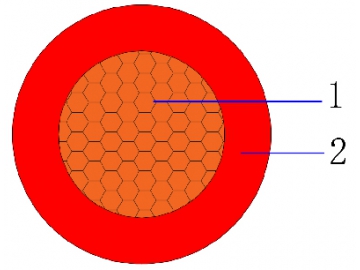

Construction：
- Conductor: Class 1 solid copper or class 2 stranded (compacted) copper or class 5 stranded copper
- Insulation: Polyvinyl chloride compound (PVC)
Temperature:
- Conductor normal operating temperature：
- 60227 IEC 01: -15℃~70℃
- 60227 IEC 02: -15℃~70℃
- 60227 IEC 05: -15℃~70℃
- 60227 IEC 06: -15℃~70℃
- 60227 IEC 07: -15℃~90℃
- 60227 IEC 08: -15℃~90℃
- Min. laying temperature: 0℃
Cross section:
- 450/750V 60227 IEC 01: 1.5~400mm2
- 450/750V 60227 IEC 02: 1.5~240mm2
- 300/500V 60227 IEC 05: 0.5~1.0mm2
- 300/500V 60227 IEC 06: 0.5~1.0mm2
- 300/500V 60227 IEC 07: 0.5~2.5mm2
- 300/500V 60227 IEC 08: 0.5~2.5mm2
Application:
- To be used for wiring of in-building or electric instruments for 450/750V or 300/500V.
Standard:
- Conductor: IEC 60228
- Structure: IEC 60227-3
Structure characteristics：
| Type | Rated Voltage | Test voltage | Test time |
| 60227 IEC 01 | 450/750V | 2500V | 5min |
| 60227 IEC 02 | 450/750V | 2500V | 5min |
| 60227 IEC 05 | 300/500V | 2000V | 5min |
| 60227 IEC 06 | 300/500V | 2000V | 5min |
| 60227 IEC 07 | 300/500V | 2000V | 5min |
| 60227 IEC 08 | 300/500V | 2000V | 5min |
