Suitable for making printed / unprinted shopping bags made of HDPE

Video

The high speed T-shirt bag making machine is ideal for producing HDPE-based printed and non-printed vest bags suited for supermarkets, shopping malls, retail stores, convenience stores, etc.

TPLAST’s automatic plastic bag making machine is powered by PLC control, boasts two servo motors for consistent length, and a touch screen display to accomplish feeding, sealing, cutting, punching holes and transporting all in one go. It is incredibly efficient, highly automated and promises great economic returns.

Technical Parameters
Model
RGHQ-500X2C
RGHQ-400X2C
Max. sealing and cutting width (mm) 470*2 370*2
Max. sealing and cutting length (mm) 650 650
Product thickness (mm) 0.015-0.035 0.015-0.035
Bag making speed (pcs/min) 280*2 280*2
Air pressure (kg/cm2) 7 7
Power (kW) 12 15
Weight (kg) 2500 2000
Dimension (m) 6.5*1.5*1.6 6.5*1.6*1.6
Application

This high speed T-shirt bag making machine is suitable for making printed and unprinted plastic shopping bags for supermarkets, shopping malls, retail stores, convenience stores, and more.

Details

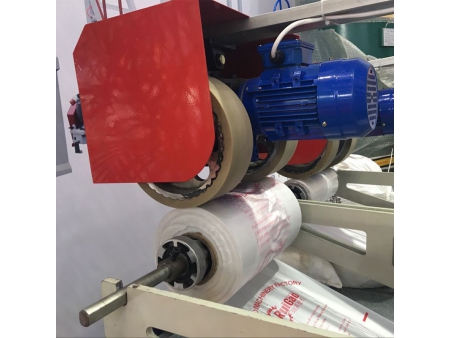

  • Unwinder Air cylinder is utilized to automatically load the film rolls AC motor tension controlling system
  • Dancer roller It is used to control the tension of film rolls
  • Automatic Stopping System The machine will automatically stop operation when the film roll is finished
  • Photocell Sensor Panasonic photocell sensor is adopted to control the unwinding of film rolls
  • Sealing Unit Pneumatic sealing knife holder, making it easy to change sealing knives

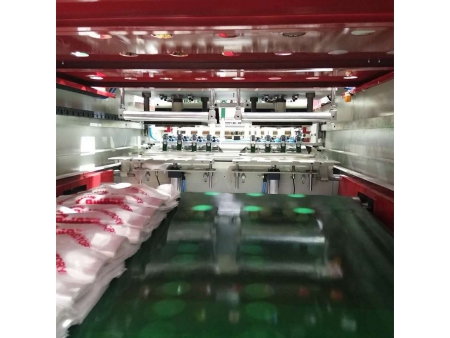

  • Stacking Unit Movable stacking unit can prevent bags from being sealed together
  • Punching Unit (clutch hand)
  • Air Cylinder with 3 Ton Pressure
  • Conveyor for punched bags

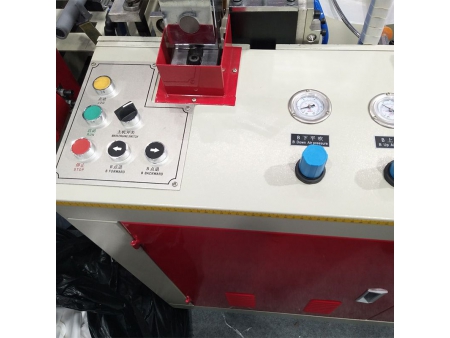

  • Touch Screen with PLC
